Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARV11-3689
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 9 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Spec: |
ARV11-3689 |
Item No: |
LPJD0696B9NL |
Files: |
Step / 3D IGS PDF Datasheet |
Application: |
100/1000Base-T |
Termination: |
Solder |
Mouting: |
DIP / Top Entry |
Cross Rf: |
LPJD0696B9NL = ARV11-3689 |
Spec: |
ARV11-3689 |
Item No: |
LPJD0696B9NL |
Files: |
Step / 3D IGS PDF Datasheet |
Application: |
100/1000Base-T |
Termination: |
Solder |
Mouting: |
DIP / Top Entry |
Cross Rf: |
LPJD0696B9NL = ARV11-3689 |

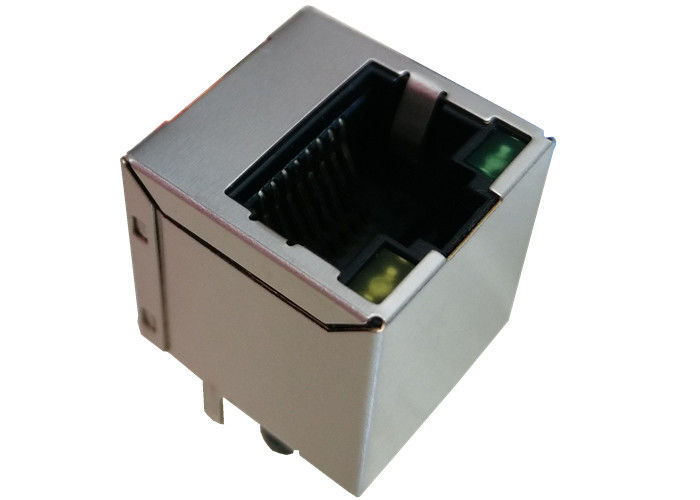

| ARV11-3689 | Vertical Mount Rj45 Jack | Top Entry Rj45 Gigabit | Vertical entry Rj45 |
ARV11-3689 ALLIED Cross/PDF/datasheet/Price/3D/Cross10/100 BaseT, LED G/Y, No EMI Fingers
1. Shield- 0.20mm THICKNESS BRASS C2680 H. PLATING NICKEL 20u" min
2. Housing- Standard Material PA66, Glass filled Polyester UL94V-0 Standard Color Yellow
3. RJ Terminal- Plastic: PA66, UL94V-0, Standard Color Yellow.
Pin: 0.35mm Thickness Phos-Bronze C5210 EH.
Plating: Nickel 40u"-60u" for all and Sn 100%, and
6u”, 15u”, 30u”, 50u” Gold Plating.
4. Input Terminal: Plastic PA66, Glass Filled, UL94V-0, Standard Color Yellow.
Pin: 0.35mm Thickness C5191-H
Plating: Nickel 40u"-60u" for all and Sn 100%.
ELECTRICAL SPECFICATIONS: @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.HI-POT:1500Vrms Min @60Hz
8.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃
| Gigabit Single Port Vertical Mount RJ45 ARV11-3689 ALLIED COMPONENTS Cross | ||
|---|---|---|
| ARV11-3689 | ARJC02-111008B | ARV11-3689 |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- A-B-xMU2 |
| ARJC07-111071A | ARV11-3868I | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- B-A-xMU2 |
| ARJC07-111071A | ARV11-3689 | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| ARJ11B-MASAI-MU2 | ARJC01-111002AR | ARJ11D-MASB-B-A-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJC01-111002T | ARJ11D-MCSC-LU2 |
| ARV11-3689 | ARJC02-111006K | ARJ11D-MDSD-A-B-XLT2 |
| ARJ11B-MASAN-LU2 | ARV11-3832 | ARV11-3689 |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-A-B-XMU2 |
| ARV11-3832 | ARV11-3689 | ARJ11D-MASE-A-B-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-B-A-EMU2 | ARJ11D-MDSG-B-A-XMU2 |
| ARJ11B-MBSCB-A-B-ELT2 | ARV11-3689 | ARJ11D-MASG-B-A-XMU2 |
| ARJC01-111002AR | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-B-A-EMU2 | ARJ11D-MDSH-A-B-XLU2 |
| ARJC07-111071A | ARJP11B-MBSB-A-B-EMU2 | ARJ11D-MASH-B-A-XLU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| ARV11-3689 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARV11-3832 | ARJ11D-MBSL-A-DA-HLU2 |
