Part Number: |
HY901184A |
Mass Production: |
HY901184A |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T POE |
Family: |
Jacks With Magnetics |
Mouting: |
Side Entry POE |
Part Number: |
HY901184A |
Mass Production: |
HY901184A |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T POE |
Family: |
Jacks With Magnetics |
Mouting: |
Side Entry POE |
| Hanrun HY901184A | Magjack HY901184A | 10/100Mbps | RJ45 Power Over Ethernet |
HY901184A Hanrun Cross/PDF/datasheet/Price/3D/Cross
Power over Ethernet RJ45 10/100 BASE-T JACK W ITH MAGNETIC MODULE
Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz 100mV 8mA DC bias current.
2.Turns Ratio(±3%):
TX=1CT:1CT RX=1CT:1CT
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20
30MHz:-16
60-90MHz:-12
5.Crosstalk(dB MIN):
1-10MHz:-40
30-60MHz:-35
60-100MHz:-30
6.CMR(dB MIN):
1-50MHz:-26
50-130MHz:-20
7.DC Current/Voltage Rating - PSE Pins:
350mA,@57V(continuous)
8.Hipot: 1500Vrms MIN
9.Operating Temperature: -40℃～+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3af specification
3.Single Port Connector For PoE Applications
4.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
5.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max

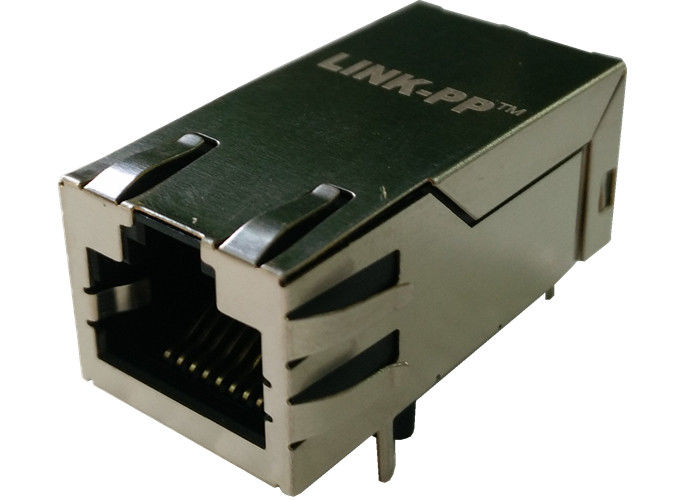

| HY901184A 10/100Base-T POE RJ45 Connector LPJK0010CNL 1x1 Magnetics Tab-up | ||
|---|---|---|
