Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: B59(111)G8-28-4625-C12
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
B59(111)G8-28-4625-C12 |
BT PN: |
B59(111)G8-28-4625-C12 |
Made In China: |
LINK-PP LPJG47561A55NL |
Applications: |
10/100/1000 Base-TX ,AutoMDIX |
Family: |

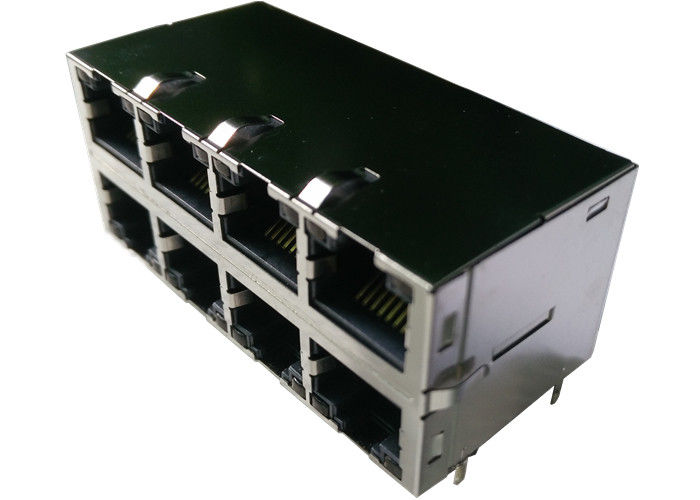

RJ45 Stack Magnetics Jack |
Orientation: |
90° Angle (Right) |
PN: |
B59(111)G8-28-4625-C12 |
BT PN: |
B59(111)G8-28-4625-C12 |
Made In China: |
LINK-PP LPJG47561A55NL |
Applications: |
10/100/1000 Base-TX ,AutoMDIX |
Family: |
RJ45 Stack Magnetics Jack |
Orientation: |
90° Angle (Right) |
|
B59(111)G8-28-4625-C12 = > LPJG47561A55NL |
||||||||||||||||||||||||||||||||
| Trader Part Number | B59(111)G8-28-4625-C12 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer |
BT |
|||||||||||||||||||||||||||||||
| LINK-PP China Factory Cross |
LPJG47561A55NL Made In China |
|||||||||||||||||||||||||||||||
| Documents |
PDF/IGS/STEP/Cross/Price/Compatible |
|||||||||||||||||||||||||||||||
| Description | 10/100Mbps Single Port Rj45 | |||||||||||||||||||||||||||||||
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |||||||||||||||||||||||||||||||
| Quantity Available |
2,000 PCS / Or 4 weeks |
|||||||||||||||||||||||||||||||
LINK-PP Made In China,Factory Mass Production List:
| B59(111)G8-28-4625-C12 | 74990112121 | B59(111)G8-28-4625-C12 | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | HY911105C | HFJ11-E2450E-L12RL | LPJG47561A55NL |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| HY911105C | 6605814-2 | MIC24013-5104T-LF3 | MIC66011-5171T-LF3 |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | B59(111)G8-28-4625-C12 | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | 2-1840450-8 | HFJ11-E2450E-L11RL | LPJG47561A55NL |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| B59(111)G8-28-4625-C12 | J00-0045NL | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | B59(111)G8-28-4625-C12 | HFJ11-1G02E-L12V3RL |
B59(111)G8-28-4625-C12 ELECTRICAL SPECFICATIONS: @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@ 100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio:
TX=1∶1 RX=1∶1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-[12-20LOG(f/50)]
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20LOG(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: -40℃ TO +85℃
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
