Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 7499511001
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50 pcs/tray,24tray /carton/32*30*31 , 9 KG/1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
PN: |
7499511001 |
Made In China: |
SM-LPJK2069CNL |
Application: |
100/1000ase-t POE+ |
Ethernet: |
Gigabit Lan |
Port: |
1 Flexible |
Hipot: |
1500V |
PN: |
7499511001 |
Made In China: |
SM-LPJK2069CNL |
Application: |
100/1000ase-t POE+ |
Ethernet: |
Gigabit Lan |
Port: |
1 Flexible |
Hipot: |
1500V |
|
Cross PN 7499511001 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
7499511001 Cross |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJK2069CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

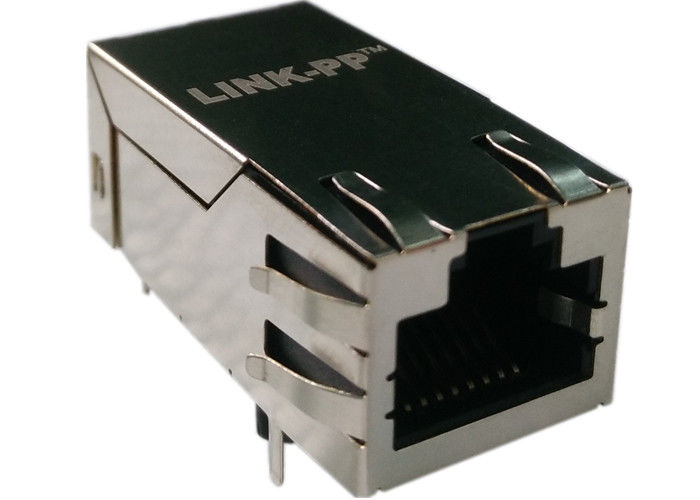

1000Base-T Modular Jack Rj45 POE+ |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
7499511001 Rj45 Electrical Specifications @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.HI-POT:1500Vrms Min @60Hz
8.Operating Temperature: -40℃～+85℃.
9.Partial Specifications:
