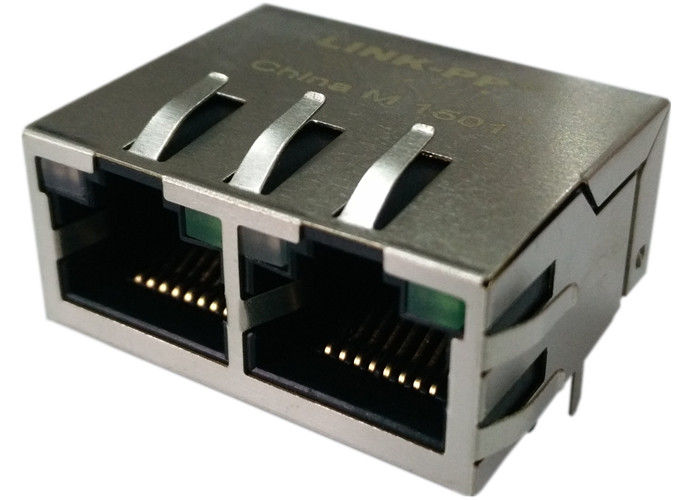

1840560-5 MAG45 Modular Jack 1X2 Gigabyte Circuit, Shielded,With Leds

Name: 1840560-5 MAG45 Modular Jack 1X2 Gigabyte Circuit, Shielded,With Leds
Brand: LINK-PP
SKU: 1840560-5
Price: 0.11 USD
Availability: InStock
Rating: 5 (194 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: 1840560-5

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, dual rj45 jack


TE PN#:	1840560-5	Made In China:	SM-LPJG2XXXANL
Family:	10/100/1000Baset	Category:	Magnetics Rj45
LED:	Flexible	Samples:	Stock Available

TE PN#:	1840560-5
Made In China:	SM-LPJG2XXXANL
Family:	10/100/1000Baset
Category:	Magnetics Rj45
LED:	Flexible
Samples:	Stock Available

1840560-5 MAG45 Modular Jack 1X2 Gigabyte Circuit, Shielded,With Leds

1840560-5 Tyco

Trader Part Number

1840560-5

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJG2XXXANL

Manufacturer

LINK-PP China

Description

Rj45 Connector with magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

1840560-5 ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
1CT∶1CT
2.OCL: 350uH Min
@100KHz/0.1V With 8mA DC Bias
3.Insertion Loss(dB Max):
1-100MHz:-0.8 100-120MHz:-1.2
4.Return Loss(dB Min):
1-30MHz:-18 30-60MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalka(dB Min):
1-30MHz:-40dB 30-60MHz:-35dB
60-100MHz:-30dB
6.CMR(dB Min):
1-50MHz:-40dB 50-150MHz:-30dB
7.Hipot: 1500Vrms
8.Operating Temperature: 0℃～70℃
