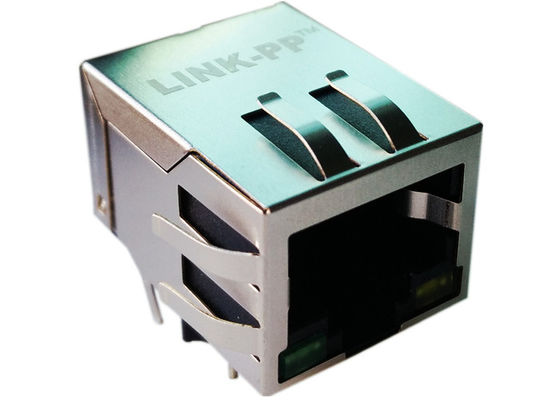

5-6610075-1 Multiple RJ45 1x5 Ganged Ports 10/100Base-T Tab-up

Name: 5-6610075-1 Multiple RJ45 1x5 Ganged Ports 10/100Base-T Tab-up
Brand: LINK-PP
SKU: 5-6610075-1
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (139 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: 5-6610075-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, modular jacks rj45


Designe PN#:	5-6610049-1	Made In China:	4+1 Port
Family:	Rj45 Multiple Port	Interface:	10/100Mbps
LED:	Green&Yellow	Samples:	Supportive

Designe PN#:	5-6610049-1
Made In China:	4+1 Port
Family:	Rj45 Multiple Port
Interface:	10/100Mbps
LED:	Green&Yellow
Samples:	Supportive

5-6610075-1 Multiple RJ45 1x5 Ganged Ports 10/100Base-T Tab-up

5-6610049-1

Trader Part Number

5-6610049-1

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ4XXXXANL

Manufacturer

LINK-PP China

Description

5Port RJ45 100M

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

5-6610075-1 ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
0.3-65MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18 40MHz:-16
50MHz:-14 60-80MHz:-12
5.Crosstalk:
0.3-80MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature Range: 0℃-70℃./-40℃-+85℃
