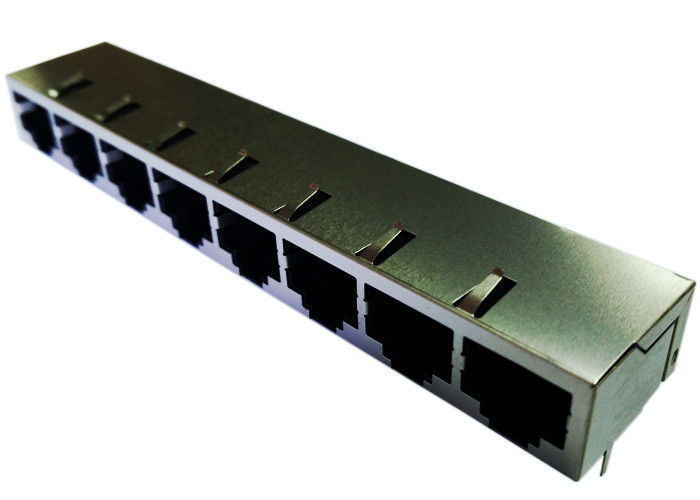

Pulse Rj45 Connector J8064E68NL 100 Base-TX Fast Ethernet 1x8 Tab-DOWN

Name: Pulse Rj45 Connector J8064E68NL 100 Base-TX Fast Ethernet 1x8 Tab-DOWN
Brand: LINK-PP
SKU: J8064E68NL
Price: 0.11 USD
Availability: InStock
Rating: 4.7 (102 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: J8064E68NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, dual rj45 jack


Designe PN#:	J8064E68NL	Made In China:	SM-LPJF86204CNL
Category:	Cat5/6	Interface:	10/100Mbps
LED:	Flexible	Samples:	Available

Designe PN#:	J8064E68NL
Made In China:	SM-LPJF86204CNL
Category:	Cat5/6
Interface:	10/100Mbps
LED:	Flexible
Samples:	Available

Pulse Rj45 Connector J8064E68NL 100 Base-TX Fast Ethernet 1x8 Tab-DOWN

J8064E68NL Pulse

Trader Part Number

J8064E68NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJF86204CNL

Manufacturer

LINK-PP China

Description

Multi 8Ports

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

100 Base-TX (Fast Ethernet) RJ45 1xN Tab-DOWN with or without LEDs integrated magnetics

J8064E68NL ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio:
TX = 1CT:1CT RX = 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
2～30MHz:-16dB MIN
60～80MHz:-10dB MIN
5.Crosstalk:
0.1～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
7.Operating Temperature: -40℃ TO +85℃.
