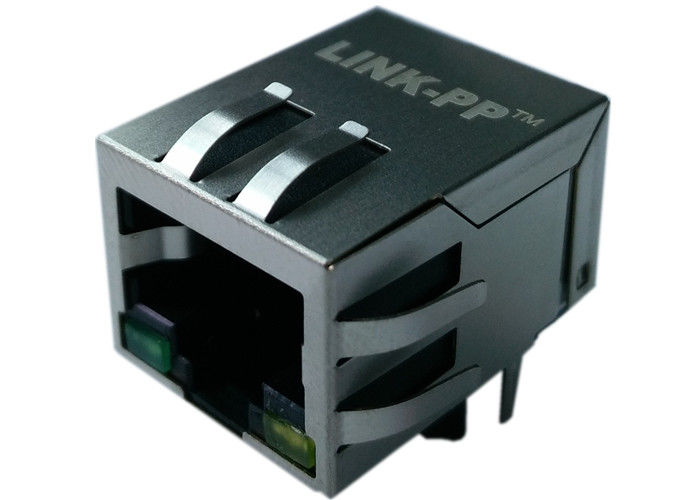

RJ45 Single Port Connector RJMG1A121C1012R Integrated 10/100 Magnetics

Name: RJ45 Single Port Connector RJMG1A121C1012R Integrated 10/100 Magnetics
Brand: LINK-PP
SKU: RJMG1A121C1012R
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (155 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJMG1A121C1012R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Designe PN#:	RJMG1A121C1012R	Made In China:	SM-LPJ00XXABNL
Category:	Rj45 PCB Mounting	Interface:	10/100Mbps
LED:	Flexible Designed	Samples:	Supportive

Designe PN#:	RJMG1A121C1012R
Made In China:	SM-LPJ00XXABNL
Category:	Rj45 PCB Mounting
Interface:	10/100Mbps
LED:	Flexible Designed
Samples:	Supportive

RJ45 Single Port Connector RJMG1A121C1012R Integrated 10/100 Magnetics

Single Port Rj45 Connector RJMG1A121C1012R Integrated 10/100 Magnetics

RJMG1A121C1012R

Trader Part Number

RJMG1A121C1012R

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ00XXABNL

Manufacturer

LINK-PP China

Description

Rj45 PCB Female

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

RJMG1A121C1012R ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
