LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
Rj45 Supplier For Ti

—— 德州仪器 指定网口供应商

Rj45 Supplier For Intel

—— 因特尔 指定网口供应商

Rj45 , Transformer Supplier For Cisco

—— 思科 网口、变压器设计商

Rj45, Transformer Supplier For Flextronics PCBA

—— 伟创力 网口、变压器供应商

I'm Online Chat Now

LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector

China LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector supplier
LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector supplier LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector supplier

Large Image :  LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJ19911ADNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part No: LPJ19911ADNL Specification: LPJ19911ADNL
Ethernet: 10/100Mbps Mounting: SMD
Termination: Solder Samples: Available

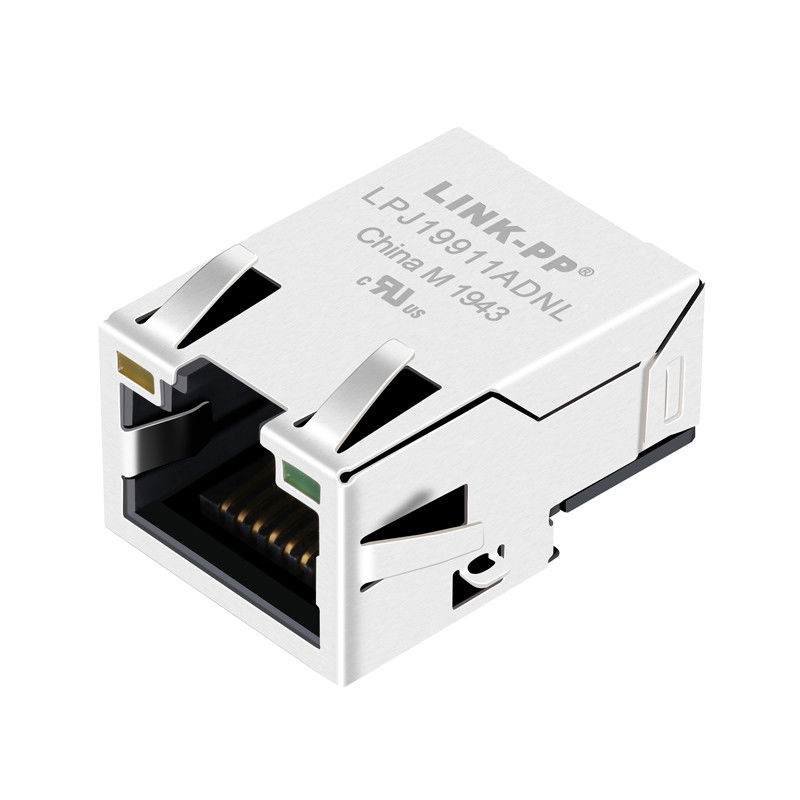

LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector
  • LPJ19911ADNL
  • 1x10/100Mbps Ethernet
  • Low Profile Rj45 With Magnetics
  • Low Profile Rj45 PCB
  • Surface Mount Rj45 Connector
  • SMD Rj45 Connector
SMT 1x1 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJ19911ADNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.447
Package Height (mm) 11.35
Package Length (Inches) 0.846
Package Length (mm) 21.50
Package Width (Inches) 0.610
Package Width (mm) 15.50
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Shielded
Speed 10/100 BASE-T
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

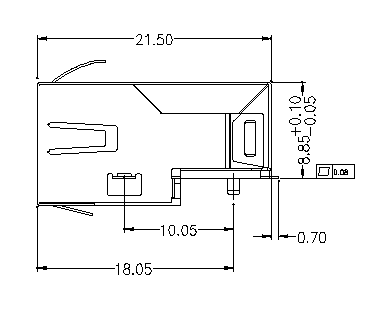

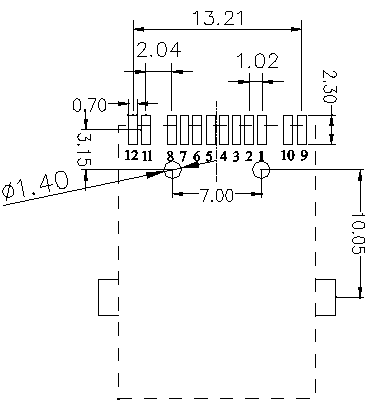

LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector

LPJ19911ADNL Magnetic SMD Jack 10/100Mbps Ultra Low Profile Rj45 Connector


Electrical Specifications @ 25℃
1.Turns Ratio(@50KHz,0.1V):
1CT∶1CT %%P2%P2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH Nin
3.Insertion Loss:
1~100MHz:-1.0dB Max
4.Return Loss(dB Min.):
1~30MHz:-18 30~45MHz:-16
45~60MHz:-14 60~80MHz:-12
5.Crosstalk:
1~100MHz:-35dB Min
6.Common Mode Rejection:
1~100MHz:-35dB Min
7.Isolation Voltage: 2250VDC,1mA,60Sec
8.Operating Temperature Range: -40℃~+85℃.
