LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED

China LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED supplier
LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED supplier LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED supplier

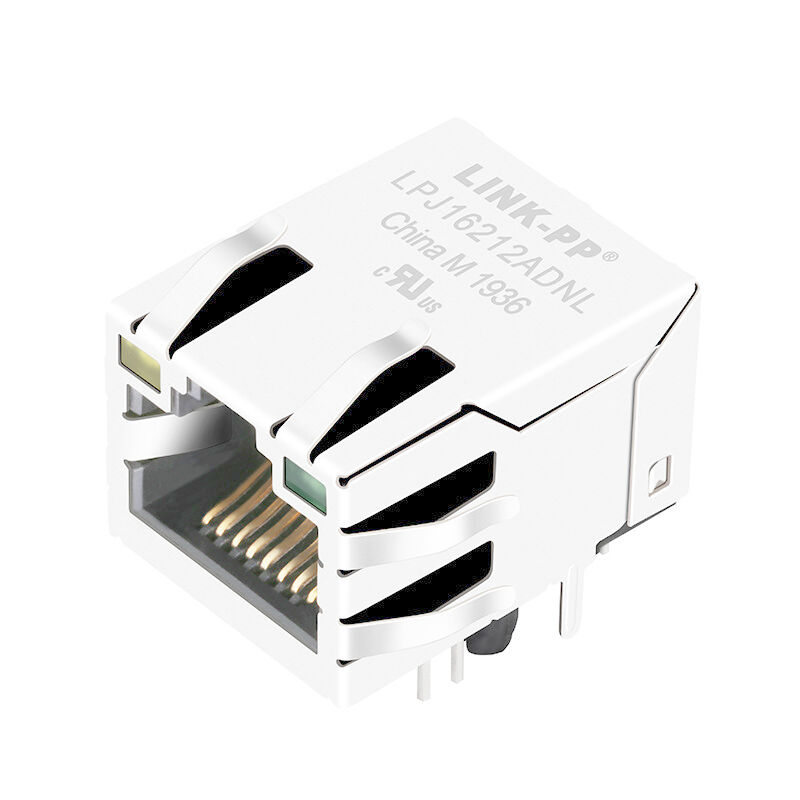

Large Image :  LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: LPJ16212ADNL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive&Discount
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: LPJ16212ADNL Part No: LPJ16212ADNL
Ethernet: 10/100Mbps Turn Ratio: 1CT:1CT
Mounting: Right Angle 90 Degree Samples: Available

LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED

  • LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up
  • Angled Rj45 Connector 10/100base-tx Ethernet
  • Telecom transformers and RJ45 modules
  • LED Indicator Flexible Design
Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Up,RoHS
LINK-PP Part Number LPJ16212ADNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications @25℃
1.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH min
@100KHz,100mV,8mAdc.
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(dB Min):
1-30MHz:-16
30-60MHz:-[16-20 log(f/30MHz)]
60-80MHz:-10
5.Crosstalk(dB Min):
1-60MHz:-40
60-100MHz:-38
6.Isolation Voltage: 1500Vrms
7.Operating Temperature: 0℃~70℃.





LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED LPJ16212ADNL RJ45 1x 10/100Mbps Ethernet Latch-up R/A Shield W/LED
