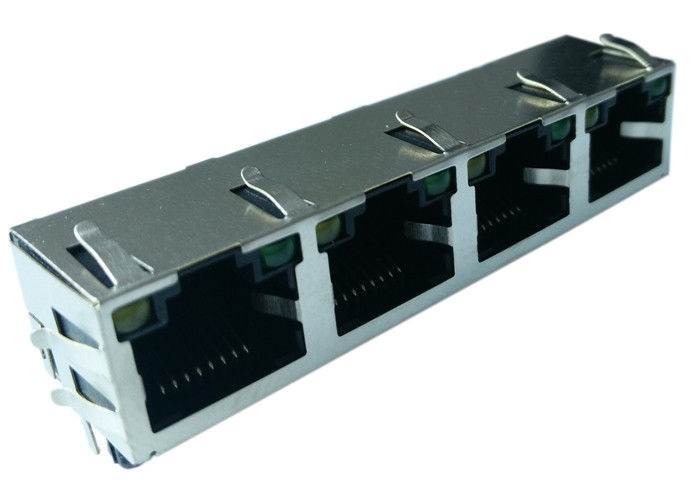

E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports

Name: E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports
Brand: LINK-PP
SKU: E5J88-11CJ25(2)-L
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (153 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: E5J88-11CJ25(2)-L

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, dual rj45 jack


Specification 1:	E5J88-11CJ25-L	Specification 2:	E5J88-11CJ22-L
Part No:	LPJE401BGNL	Port:	1x4
LED:	Green-Yellow	Samples:	Available

Specification 1:	E5J88-11CJ25-L
Specification 2:	E5J88-11CJ22-L
Part No:	LPJE401BGNL
Port:	1x4
LED:	Green-Yellow
Samples:	Available

E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports

E5J88-11CJ25-L / E5J88-11CJ22-L Side Entry LED Rj45 Ganged Jack 1x4 Ports

32 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK
LINK-PP LPJE401AGNL Female To Female Rj45
Cross Pulse E5J88-11CJ25-L / E5J88-11CJ22-L
Speed: CAT 3/5/5e Rj45 Network Port Without Magnetics Inside
Number of Ports: 1X4
Latch: UP
Package: THT
PCB Mount Angle: SIDE ENTRY Female Jack

NOTES:
PCB JACK Specification
1. Insulation Resistance:500MΩMIN @ 500 VDC
2. Withstanding Voltage:AC1000V 50Hz or
60Hz 1min.
3. Durability:600 Mating Circles MIN.
4. Gold Plating:
(Gold Flash;1.5;3;6;15;30;50)U" Inch

ENVIRONMENTALl
1. Storage Temperature: -40℃ To +85℃
2. Opertion Temperature: -40℃ To +85℃
3. Wave Soldering Temperature:
255℃～265℃(5～10Seconds)
4. RoHs Compliant.
