Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JX80-0033NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Specification: |

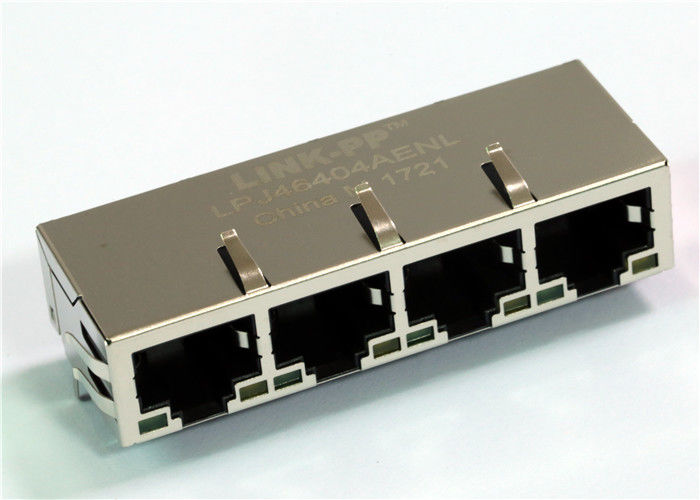

JX80-0033NL |
Part No: |
LPJ46404AENL |
Ethernet: |
4x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Specification: |
JX80-0033NL |
Part No: |
LPJ46404AENL |
Ethernet: |
4x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃～+85℃.
|
|
