Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO9001,SGS,REACH,UL,RoHS
Model Number: J8064D688ANL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25Kpcs
Price: $0.11-$12
Packaging Details: 10/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Items: |

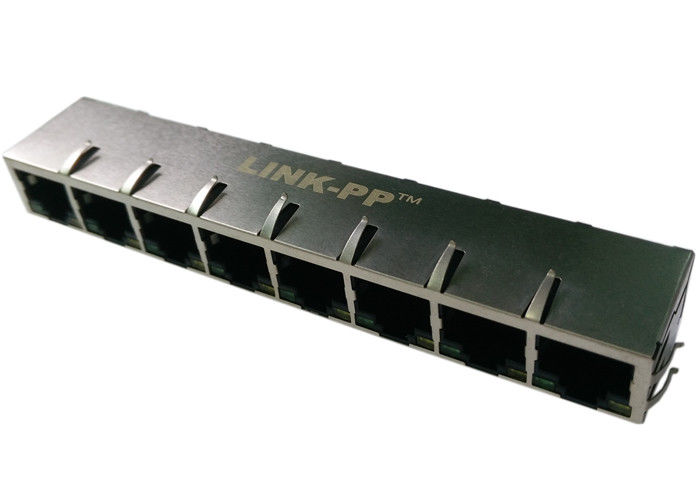

J8064D688ANL 8 Port RJ45 Connector |
Tab Direction: |
LATCH-DOWN |
LEDs Color: |
GREEN & YELLOW |
Mounting: |
Right Angle |
Number Of Ports: |
1X8 |
Speed: |
10/100 Base-TX |
Automotive: |
No |
PoE: |
NONE |
Shielding: |
Shielded |
EMI / Gasket: |
With |
Items: |
J8064D688ANL 8 Port RJ45 Connector |
Tab Direction: |
LATCH-DOWN |
LEDs Color: |
GREEN & YELLOW |
Mounting: |
Right Angle |
Number Of Ports: |
1X8 |
Speed: |
10/100 Base-TX |
Automotive: |
No |
PoE: |
NONE |
Shielding: |
Shielded |
EMI / Gasket: |
With |
The J8064D688ANL enhances network performance in your Small Office/Home Office and provides 100BASE-TX high-speed Internet access to your ADSL modem. Multiport RJ45 provides a reliable and efficient data transmission solution for LAN-on-Motherboard (LOM). It is ideal for stable network connections in hubs and switches and facilitates smooth data transfer in large network environments.
| Overview |
100 Base-TX Fast Ethernet RJ45 1xN Tab-DOWN Integrated Magnetics Connector (ICM) |
|---|---|
| Ports Configuration | 1x8 |
| Data Rate | 100BASE-TX |
| Shielding | Shielded, EMI Fingers |
| LED Option | Left green / Right yellow |
| Mounting Style | Through Hole |
| Mounting Angle | Right Angle |
| ROHS Compliant | YES-RoHS-6 |
| Termination Style | Solder |
| Contact Mating Area Plating | GOLD 30 U'' |
| Turns Ratio |
TX: 1CT:1CT RX: 1CT:1CT |
| Insertion Loss (dB TYP) |
1-100 MHz:-1.2 |
| Return Loss (dB TYP) 100Ω (± 15 Ω) |
1-10 MHz: -20 60-80 MHz: -12 |
| Cross Talk (dB TYP) |
1-30 MHz: -40 30-60 MHz: -35 60-100 MHz: -30 |
| Common Mode Rejection (dB TYP) |
1-50 MHz: -30 50-130 MHz: -20 |
| Hipot (VDC MIN) | 2250 @ 50/60 Hz 1 minute |
| Operating Temperature | 0°C- 70°C |
| Length |
21.36
|
| Width | 114.73mm |
| Height | 13.61mm |
