Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree

Name: Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree
Brand: LINK-PP
SKU: JX8064D688ANL
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (117 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: ISO9001,SGS,REACH,UL,RoHS

Model Number: JX8064D688ANL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, dual rj45 jack


Specification:	JX8064D688ANL	Part No:	LPJ86404AENL
Ethernet:	8 X 10/100Mbps	Mounting:	Right Angle
Indicators:	LEDs	Samples:	Available

Specification:	JX8064D688ANL
Part No:	LPJ86404AENL
Ethernet:	8 X 10/100Mbps
Mounting:	Right Angle
Indicators:	LEDs
Samples:	Available

Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree

RJ45 1xN, Tab-DOWN 8-pin with internal magnetics LPJ86404AENL
10/100 Base-TX PHY Interface With Rj45 Magnetics JX8064D688ANL
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
Internal magnetics: 100% electrically tested for Hipot and functionality
Meets IEEE 802.3 specification
350 µH minimum OCL with 8mA bias current
High performance for maximum EMI suppression

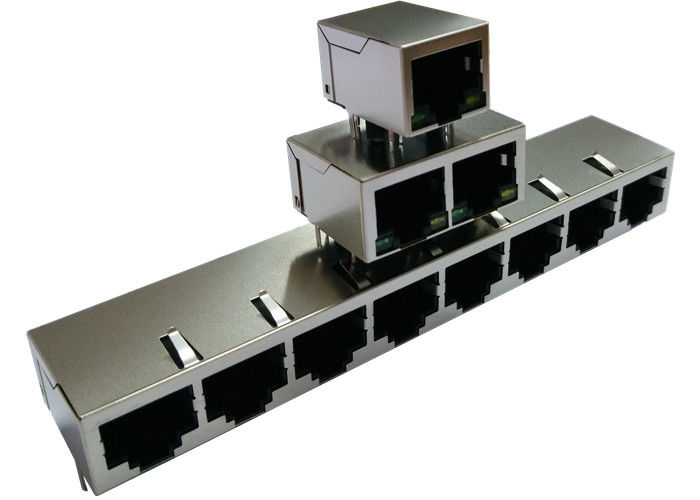

Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree 0

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: -40℃～+85℃.

Gangjack 1x8 Port Modular Rj-45 8p8c JX8064D688ANL / LPJ86404AENL 90 Degree 1
