Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

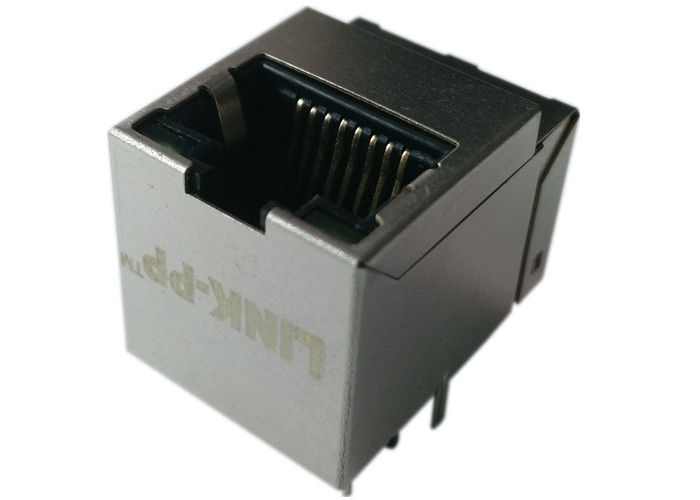

Model Number: HFJV1-E1G16-L12RL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 54PCS/Tray,1296PCS=10KG/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
HFJV1-E1G16-L12RL |
Part No: |
LPJD4773BDNL |
Ethernet: |
1x10/100/1000Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
Top Entry, Shield |
Samples: |
Available Free |
Specification: |
HFJV1-E1G16-L12RL |
Part No: |
LPJD4773BDNL |
Ethernet: |
1x10/100/1000Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
Top Entry, Shield |
Samples: |
Available Free |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN | |
| Operating Temperature Range | -40℃～+85℃ |
