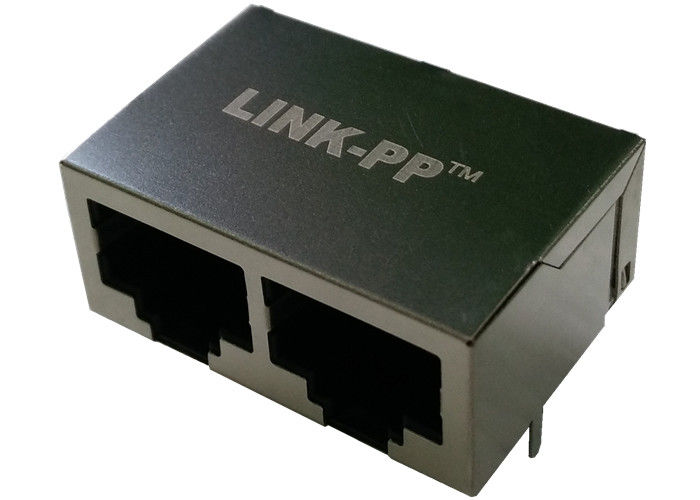

Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: HR901201A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Specification: |
HR901201A |
P/N: |
LPJF26404DNL |
Schematic: |
4 Coils, 1CT:1CT;1CT:1CT |
Ethernet: |
10/100 Base |
Mechanical: |
21.3x31.28x13.5mm |
Samples: |
Free |
Specification: |
HR901201A |
P/N: |
LPJF26404DNL |
Schematic: |
4 Coils, 1CT:1CT;1CT:1CT |
Ethernet: |
10/100 Base |
Mechanical: |
21.3x31.28x13.5mm |
Samples: |
Free |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
