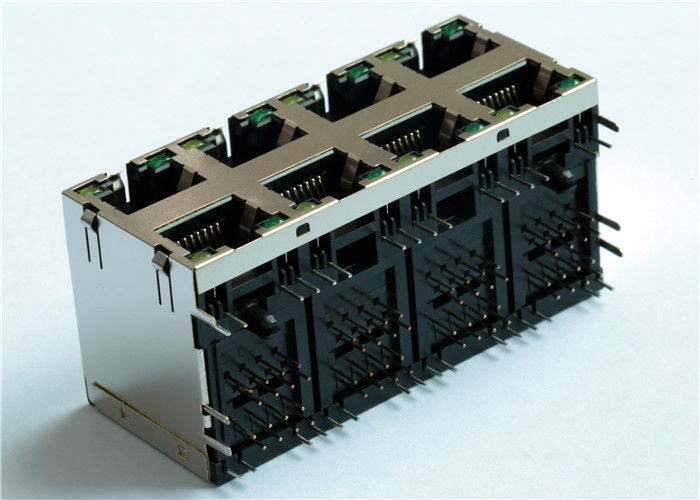

2X4 Ports Stackable Modular Jack RJSNE538508 , RJSNE-5385-08 Variety of LED

Name: 2X4 Ports Stackable Modular Jack RJSNE538508 , RJSNE-5385-08 Variety of LED
Brand: LINK-PP
SKU: RJSNE-5385-08
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (154 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: RJSNE-5385-08

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Spec:	RJSNE-5385-08	Made In China:	LPJE1082AGNL
Ethernet:	Category 5	Indicator:	LEDs-Green-Yellow
Samples:	Available

Spec:	RJSNE-5385-08
Made In China:	LPJE1082AGNL
Ethernet:	Category 5
Indicator:	LEDs-Green-Yellow
Samples:	Available

2X4 Ports Stackable Modular Jack RJSNE538508 , RJSNE-5385-08 Variety of LED

2X4 Ports Stackable Modular Jack RJSNE538508 RJSNE-5385-08 Variety of LED

Introduction

This product specification defines the general use and performance parameters for LINK-PP
LPJE108 series of modular jacks.
Availability:2x4 ports available with a wide variety of LED and shielding options.
Usage
The LPJE108 series of modular jacks supports Ethernet Protocols. Shielding available for increased
EMI performance and LEDs for Link Activity and Network Speed verification.
2X4 Ports Stackable Modular Jack RJSNE538508 , RJSNE-5385-08 Variety of LED 0

Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches Office & Home Equipment

PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines Consumer Goods
Security Systems

Set Top BoxesVideo Game Systems

Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals

Electrical Characteristics
Contact resistance: 20 mΩ max.
Insulation resistance: 500 MΩ minimum at 500V DC for 2 minutes max.
Current rating: 1.5 Amps
Voltage rating: 125 Volts AC
DWV 1000 VAC, 60 Hz. 1 min.

1500V AC Isolation for Datapins
LED forward DC current: 20mA typical
LED forward Voltage: 1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
LED reverse voltage: 5 Volts minimum
LED light intensity: 0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
LED wave length: Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red: 625± 5 nm measured @ 20mA
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Operating temperature: -40° C to +85° C
Material Requirements
RJSNE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:

Engineering thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Copper alloy, Nickel plated with tin dipped tail
or stainless steel with tin dipped tail.
LED:
Pure Tin plating on LED tail
