Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,REACH,ISO
Model Number: LP11BC01000-MY
Payment & Shipping Terms
Minimum Order Quantity: 50/1200pcs
Price: $0.5-$1.2
Packaging Details: Reel
Delivery Time: 1-2 Weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Product Type: |
Cage |
Form Factor: |
SFP+ |
Port Matrix Configuration: |
1 X 1 |
Operating Temperature Range: |
-55 – 85 °C |
Packaging Method: |
Tray |
Compatible Brands: |
TE |
Types: |
SFP+ |
Number Of Ports: |
1x1 |
Data Rate (Max)(Gb/s): |
16 |
Termination Method: |
Press Fit |
Lightpipes: |
Without |
Heatsinks: |
Without |
EMI Containment Feature Type: |
Internal/External EMI Springs |
Product Type: |
Cage |
Form Factor: |
SFP+ |
Port Matrix Configuration: |
1 X 1 |
Operating Temperature Range: |
-55 – 85 °C |
Packaging Method: |
Tray |
Compatible Brands: |
TE |
Types: |
SFP+ |
Number Of Ports: |
1x1 |
Data Rate (Max)(Gb/s): |
16 |
Termination Method: |
Press Fit |
Lightpipes: |
Without |
Heatsinks: |
Without |
EMI Containment Feature Type: |
Internal/External EMI Springs |

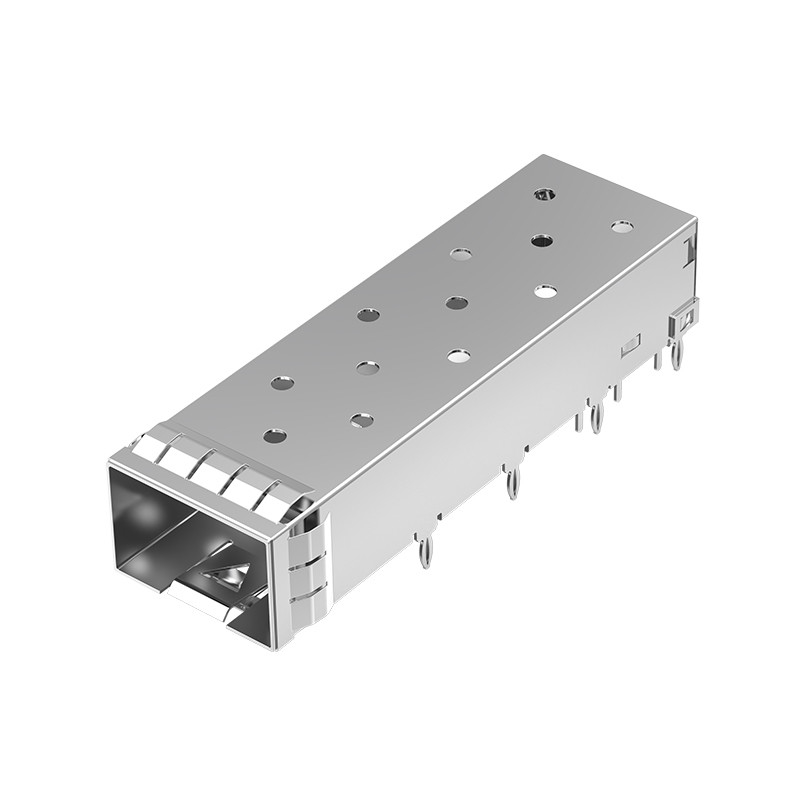

The LP11BC01000-MY SFP+ Cage is made from nickel-plated copper alloy, designed for high-speed data communication applications. It features a 1x1 port configuration and supports a wide operating temperature range from -55°C to 85°C. The cage employs through-hole, right-angle mounting with press-fit termination, and does not include a lightpipe. Its dimensions are 9.70 mm in height, 48.70 mm in length, and 14.00 mm in width. The cage also includes EMI springs for effective electromagnetic interference containment, and it comes in tray packaging.
|
SFP+ 1x1 Cage |
|
|---|---|
|
Compatible Brands |
TE, Amphenol, Molex |
|
Data Rate |
16Gb/s Max |
|
Number of Ports |
1x1 |
| Termination Method | Press Fit |
|
Light pipes |
Without |
|
Heatsinks |
Without |
|
EMI Containment Feature Type |
Internal/External EMI Springs |
|
Operating Temperature Range |
-55°C to +85°C |
| Connector Type | SFP+ |
|
Material |
Copper alloy with nickel plating |
|
Length |
48.70 mm (1.917 inches) |
|
Width |
14.00 mm (0.551 inches) |
| Height | 9.70 mm (0.382 inches) |
|
Package |
Tray |
