ARJM11B3-805-KK-ER2-T 2.5G Base-T RJ45 Female Modular Jack With LEDs

Name: ARJM11B3-805-KK-ER2-T 2.5G Base-T RJ45 Female Modular Jack With LEDs
Brand: LINK-PP
SKU: ARJM11B3-805-KK-ER2-T
Price: 0.05 USD
Availability: InStock
Rating: 4.6 (139 reviews)

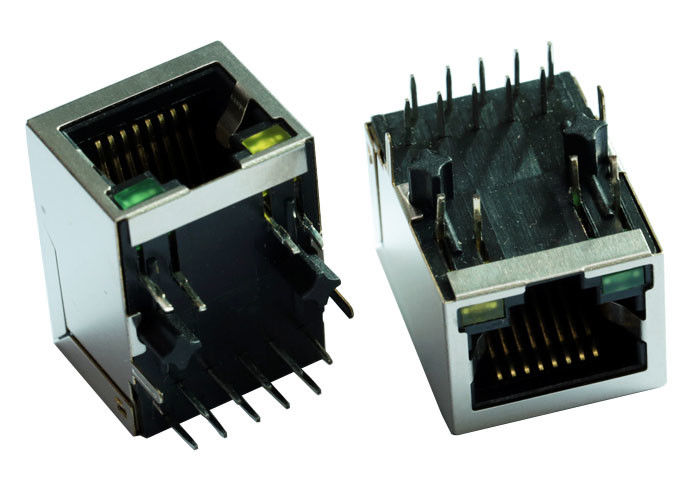

Large Image : ARJM11B3-805-KK-ER2-T 2.5G Base-T RJ45 Female Modular Jack With LEDs

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	ARJM11B3-805-KK-ER2-T

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

Specifications:	ARJM11B3-805-KK-ER2-T	P/N:	LPJxxxxxNL
Ethernet:	1x 2.5G Base	Sample:	Free
Shielding:	Shielded, EMI Finger	Contact Finish:	Gold
Highlight:	rj-45 ethernet jack , modular jacks rj45

ARJM11A1-805-KB-ER2-T 2.5G Base-T RJ45 Female Modular Jack With LEDs

Part Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	2.5G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.535" (13.59mm)
LED Color	Green, Orange - Green, Orange
Number of Cores per Jack	8
Shielding	Shielded
Features	Board Lock
Tab Direction	Down
Contact Material	-
Contact Finish	Gold
Operating Temperature	-40°C ~ 85°C
Contact Finish Thickness	6.00µin (0.152µm)

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Other Part Number

ARJM11A1-805-NN-EW4

ARJM11B1-805-NN-EW4

ARJM11A1-809-NN-EW4

ARJM11B1-809-NN-EW4

ARJM11C7-805-NN-ER4-T

ARJM11D7-805-NN-ER4-T

ARJM11C7-809-NN-ER4-T

ARJM11D7-809-NN-ER4-T

ARJM11C7-805-AB-CW2

ARJM11D7-805-AB-CW2

ARJM11A1-805-JA-EW2

ARJM11B1-805-JA-EW2

ARJM11A1-809-JA-EW2

ARJM11B1-809-JA-EW2

ARJM11A3-805-JA-EW2

ARJM11B3-805-JA-EW2

ARJM11A3-809-JA-EW2

ARJM11B3-809-JA-EW2

ARJM11A3-805-KB-EW2

ARJM11B3-805-KB-EW2

ARJM11A3-809-KB-EW2
