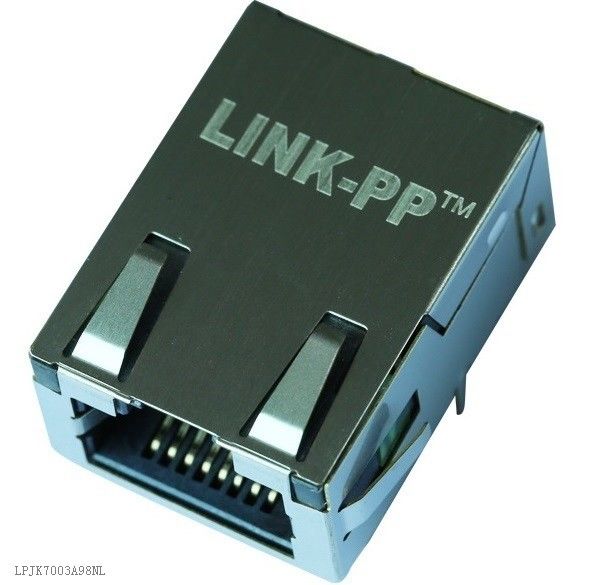

Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs

China Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs supplier
Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs supplier Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs supplier

Large Image :  Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJK7003A98NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Specification: LPJK7003A98NL Part Number: LPJK7003A98NL
Cross&Datasheet: LPJK7003A98NL Apllication: 10/100/1000Base-TX
Original Munafactuer: LINK-PP Project Application: BeagleBone Black

Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs



Competitor Cross Reference





Part Number

Manufacturer

Part Number

Manufacturer Description

LPJK7003A98NL

LPJK7003A98NL

LINK-PP

Low-Profile RJ45 Jack With Gigabit integrated Transformer


Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Rj45 10/100/1000 Mbps Thru-Hole

Orientation Termination LED Color Shielding
90° Angle (Right) Solder Red/Red Shielded



Features

  • RJ-45 connector integrated with Filter
  • Size same as RJ-45 connector to save PCB board space
  • Reduce EMI radiation, Improve EMI performance
  • High performance for maximum EMI suppression.
  • ISO9001,SGS,UL,CE,REACH
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • Reduce EMI radiation, Improve EMI performance
  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
  • Multi-port and Stackable configurations (Thru-hole/ SMT)
  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction

Related Part Number
1840257-8 5-6605748-9 1840331-3 2-6610005-2
1840257-9 6-6605748-1 4-1840331-5 2-6610005-4
1-1840257-1 1-6605758-1 1840349-1 2-6610005-5
1-1840257-2 5-6605758-1 4-1840349-7 3-6610005-5
1-1840257-3 5-6605758-2 9-1840349-7 5-6610005-6
1-1840257-4 5-6605758-4 5-1840406-8 6-6610005-6
1-1840257-5 5-6605758-7 6-1840406-8 6610144-6
1-1840257-6 5-6605758-8 1840510-1 6610144-8
1-1840257-7 5-6605758-9 1840552-6 2-6610144-6
1-1840257-8 6-6605758-1 1840552-8 5-6610156-8
1-1840257-9 5-6605761-1 1-1840552-1 2-6610156-8
2-1840257-1 6-6605761-1 1-1840552-5 6620000-1





Specifications




Low-Profile RJ45 Jack LPJK7003A98NL Gigabit Tab-Up With LEDs In Ethernet Network




Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs



Ethernet Network Low-Profile RJ45 Jack Gigabit Tab-Up With LEDs
