Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: RoHS,FCC
Model Number: JXT4-1141HL
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $1.0-$3.8
Packaging Details: 60PCS/Tray,22Trays=37*30*30cm=10KGS=1320pcs/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000000pcs Per Month
Connection Style: |
SIDE ENTRY, LATCH-DOWN |
Number Of Ports: |
1X1 |
Mounting: |
THT |
Data Rate: |
10GBASE-T |
LEDs Color: |
GREEN/YELLOW & GREEN |
EMI Tabs: |
With |
PoE: |
NONE |
Operating Temperature Range: |
-40°C - +85°C |
Connection Style: |
SIDE ENTRY, LATCH-DOWN |
Number Of Ports: |
1X1 |
Mounting: |
THT |
Data Rate: |
10GBASE-T |
LEDs Color: |
GREEN/YELLOW & GREEN |
EMI Tabs: |
With |
PoE: |
NONE |
Operating Temperature Range: |
-40°C - +85°C |

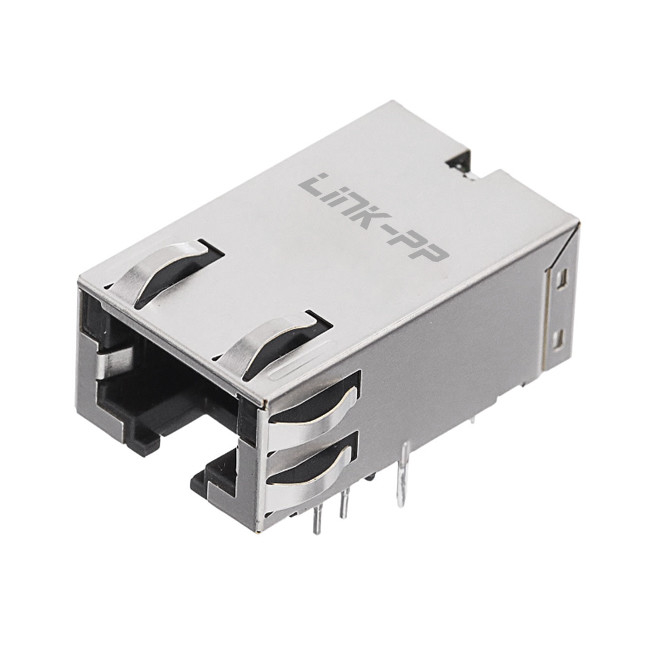

The JXT4-1141HL is a 1X1 Tab-Down, low-profile industrial RJ45 Integrated Connector Module (ICM) for PCI Express. This Modular Jack Connector is designed to support 10GBASE-T transceivers, making it ideal for high-performance network applications:
1. Network equipment: JXT4-1141HL can be used for switches, routers, firewalls, server systems and other network equipment that require high-speed network connections.
2. Test and measurement equipment: industrial test systems, laboratory machines, etc.
3. Medical equipment: Large imaging systems, laboratory analyzers and other medical devices can use this ICM to transfer files and connect to the hospital network at 10G high speed.
4. Industrial Automation: Factory automation controllers, programmable logic controllers (PLCs), and human-machine interfaces (HMI) can use the JXT4-1141HLRJ45 Connector for industrial communication.
5. Avionics: Onboard flight computers and systems used in defense and aerospace applications may require the robust data transfer capabilities provided by this industrial-grade Low Profile RJ45 Connector.
6. Transportation systems: Railways, infrastructure monitoring systems and intelligent transportation systems can integrate this RJ45 Jack to achieve high-bandwidth connections.
| Items | CONN, RJ45, 10G, 1:1, LED YG/G 4CH TY |
|---|---|
| Part Number | JXT4-1141HL JXT4 Series Pulse RJ45 Connector |
| Operating Temperature | -40°C to +85°C |
| Channel Option | 4 |
| LEDs (L/R) | GREEN-YELLOW/GREEN |
| Insertion Loss |
-3.0dB MAX @ 100 KHz -5.0dB MAX @ 1-400 MHz |
| Return Loss |
-22.0dB MIN @ 1-100 MHz -16.5dB MIN @ 200 MHz -13.2dB MIN @ 300 MHz -9dB MIN @ 500 MHz |
| Common to Differential Mode Rejection | -30dB MIN @ 1-300 MHz -22dB MIN @ 300-500 MHz |
| Cross Talk | -28dB @ 1-100 MHz -19dB @ 100-500 MHz |
| Hipot | 2250VDC MIN |
