L830-1J1T-43 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

China L830-1J1T-43 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded supplier

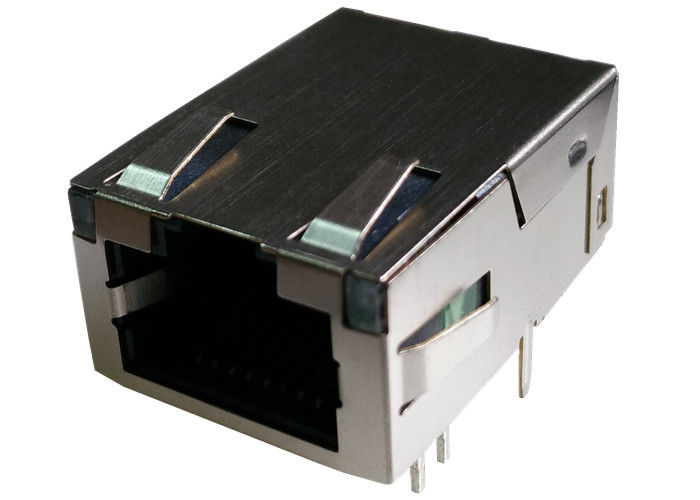

Large Image :  L830-1J1T-43 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: L830-1J1T-43

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: L830-1J1T-43 Mass Production: LPJK7036SA98NL
Original Munafactuer: LINK-PP Application: 100/ 1000 Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAM3S1CB-CUR Mount Style: DIP / Side Entry

L830-1J1T-43 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Quick Details

Low-Profile 1000 Base-T Shielded

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space
3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【L830-1J1T-43

7.Mass Production Model:【LPJK7036SA98NL


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


L830-1J1T-43 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Single Port Low Profile Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow,Tab Up,RoHS
LINK-PP Part Number LPJK7036SA98NL
Belfuse Part Number L830-1J1T-43
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.04
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
