L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

China L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded supplier

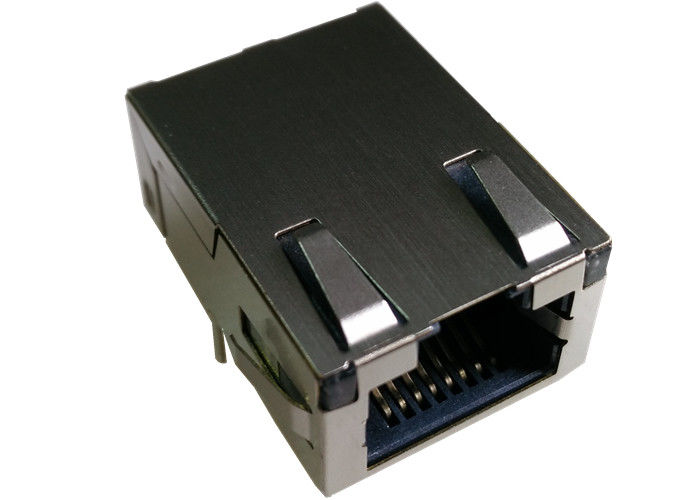

Large Image :  L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: L835-1X1T-S7

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: L835-1X1T-S7 Mass Production: LPJKXXXXNL
Original Munafactuer: LINK-PP Application: 100/ 1000 Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAM3S1CB-CUR Mount Style: DIP / Side Entry

L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Quick Details

Low-Profile 1000 Base-T Shielded

1. RoHS “NL” peak solder rating 260°C
2. Low height and small footprint to minimize board space
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression

6. Designing Model: 【L835-1X1T-S7

7. Mass Production Model:【LPJKXXXXNL


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded

Part Number L835-1X1T-S7
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
Package Height (mm) 11.38
Package Length (mm) 26.06
Package Width (mm) 16.52
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
L835-1X1T-S7 Low-Profile RJ45 Jack Conn Magjack 1Port 1000 Base-T Shielded



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Replacable Parts



0811-1X4T-06 0833-2X4R-33 0826-1X1T-80-F 0854-2X4R-66
0811-1XX1-01 0863-2X4R-Y4-F 0826-1X1T-GH-F 0854-2X4R-66-F
0811-1XX1-02 0863-2X5R-54 0826-1X1T-JG-F 0854-2X6R-66
0811-1XX1-03 0863-2X6R-54 0826-1X1T-M1-F 0854-2X6R-66-F
0811-1XX1-12 0863-2X6R-54-F 0826-1X2T-23-F 0854-2X6R-AH
0811-1XX1-22 0863-2X8R-54 0826-1X2T-32-F 0854-2X8R-66
0811-1XX1-27 0863-2X8R-54-F 0826-1X4T-23 0854-2X8R-66-F
0811-1XX4-03 0811-2X6R-28 0826-1X4T-23-F 0854-2X8R-AH
0811-22X8R-28-F 0811-2X6R-28-F 0826-1X4T-32-F 0862-1J1T-43
0811-2X4R-28 0811-2X8R-19 0826-1X4T-43 0862-1J1T-43-F
0811-2X4R-28-F 0811-2X8R-28 0826-1X4T-43-F 0863-2X4R-54
0811-2X6R-19 0812-1X1T-03 0826-1XX1-46 0863-2X4R-54-F
S811-1X1T-06-F 08B0-1X4T-06-F 0826-1D1T-43-F 08B1-1XX1-03-F
S811-1X1T-06-F 08B0-1G4T-06-F 0826-1E1T-43-F 0817-1G1T-21-F
S811-1X1T-06-F L886-1G2T-BF 0826-1L1T-43-F 0817-1X1T-21-F
S811-1X1T-A4-F 0810-1X4T-06-F 0826-1XX1-43-F 08B0-1C1T-06-F
S811-1X1T-A4-F V811-1X4T-06-F 0826-1Y1T-43-F 0817-1AX1-11-F
S811-1X1T-A4-F 0843-2C1T-33-F V890-1RX1-A1 08B0-1X1T-27-F
08B1-1X1T-36-F 0879-2C1R-54 0875-1B1T-P1 08B0-1B1T-36-F
08B0-1X1T-06-F 0813-1X4T-57-F 0826-1X1T-GJ-F 08B0-1G1T-36-F
08B0-1G1T-06-F 08B0-1G4T-36-F 0821-1G1T-43-F 08B0-1XX1-03-F
08B0-1D1T-06-F 08B0-1X4T-03-F 0821-1D1T-43-F 08B0-1D1T-03-F
0817-1A1T-11-F 08B0-1B4T-36-F 0826-1L1T-23-F 0826-1AX1-47-F
08B0-1X1T-36-F 08B0-1D4T-06-F 0826-1M1T-23-F S811-1X1T-03-F
0826-1X1T-M1-F 0813-1X4T-23-F 0826-1E1T-23-F V895-1001-AW
08B0-1X1T-03-F 0826-1B4T-23-F 0826-1D1T-23-F L811-1X1T-06-F
08C2-1X1T-03 0826-1D4T-23-F 0826-1B1T-23-F L811-1X1T-03-F
08C2-1X1T-36 0826-1K4T-23-F 0826-1J1T-23-F C893-1DX1-E5
