V890-1RX1-A1 Vertical RJ45 Jack 1000 Base-T AutoMDIX Through Hole LPJD0834BUNL

China V890-1RX1-A1 Vertical RJ45 Jack 1000 Base-T AutoMDIX Through Hole LPJD0834BUNL supplier

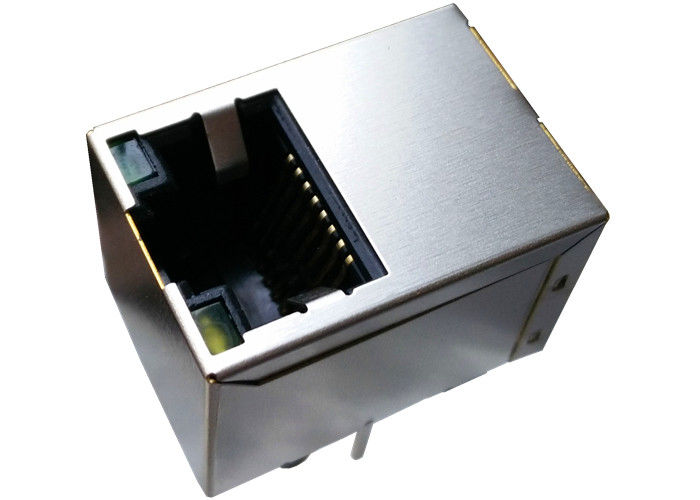

Large Image :  V890-1RX1-A1 Vertical RJ45 Jack 1000 Base-T AutoMDIX Through Hole LPJD0834BUNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: V890-1RX1-A1

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: 1.125↑
Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part NO.1: V890-1RX1-A1 Part NO.2: V890-1RX1-A1
Mass Production: LPJD0834BUNL Original Munafactuer: LINK-PP
Application: 10/100/1000Mbps Termination: Solder
LEDs: Optional Part NuMount Stylember2: DIP / Top Entry

V890-1RX1-A1 Vertical RJ45 Jack 1000 Base-T AutoMDIX Through Hole LPJD0834BUNL

Quick Details

FastJack ™ 1x1 Vertical Gigabit RJ45

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

7..Designing Model: 【V890-1RX1-A1

8..Mass Production Model:【LPJD0834BUNL



MAG., REVERSE LATCH , LED optional, EMI-finger Optional.


Description
V890-1RX1-A1 Vertical RJ45 Jack 1Port 1000 Base-T AutoMDIX Through Hole

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
