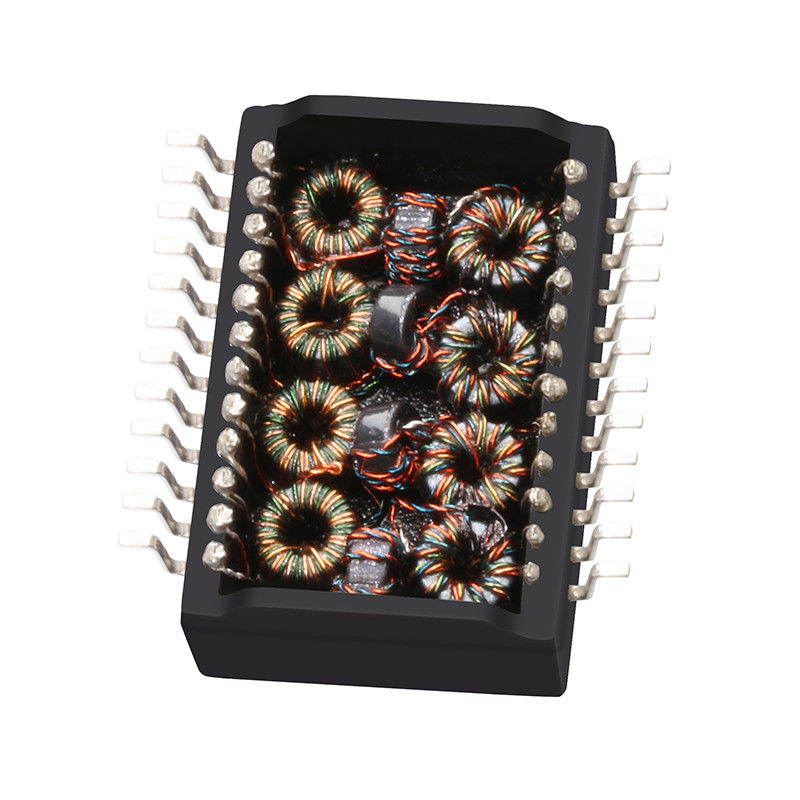

Bel S558-5999-P3-F Gigabit Ethernet Transformer 1000Base-T 24Pins Magnetics

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: S558-5999-P3-F

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Specification:
S558-5999-P3-F
LINK-PP P/N:
LP5007NL
Applications:
1000 Base-T
Family:
Gigabit Magnetics
Mounting:
SMD
Hi-pot:
1500Vrms
OCL:
350uh Min
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
S558-5999-P3-F
LINK-PP P/N:
LP5007NL
Applications:
1000 Base-T
Family:
Gigabit Magnetics
Mounting:
SMD
Hi-pot:
1500Vrms
OCL:
350uh Min
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Bel S558-5999-P3-F Gigabit Ethernet Transformer 1000Base-T 24Pins Magnetics

Bel S558-5999-P3-F Gigabit Ethernet Transformer 1000Base-T 24Pins Magnetics


Bel S558-5999-P3-F Gigabit Ethernet Transformer

Trader Part Number S558-5999-P3-F BelFuse
Price Break Unit Price Extended Price
1-5 Free Free
10-50 2.0 >25
100-500 0.85 >65
1,000-2,500 0.68 >880
5,000 Negotiable Negotiable
10,000 Negotiable Negotiable
50,000  Negotiable Negotiable
100,000  Negotiable Negotiable
500,000  Negotiable Negotiable
Manufacturer

LINK-PP

Made In China

LP5007NL #LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Description Gigabit Magnetics Transformers
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available

3,000 PCS /  Or 5 weeks



Detailed Information:

LINK-PP LP5007NL 100% CROSS S558-5999-P3-F
LINK-PP Part Number LP5007NL
Specification S558-5999-P3-F
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +40℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 12
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.70
Package Width (Inches) 0.650
Package Width (mm) 16.51
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
