Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XTFZ-DGS2401HC1-TXP
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
XTFZ-DGS2401HC1-ECX |
PN: |
LP5007NL |
Made In EthernetChina: |
1000 Base-T |
Pins: |
24Pins |
Family: |
Gigabit Magnetics |
Mounting: |
SMD |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Lifecycle: |
More Than 20Years |
Specification: |
XTFZ-DGS2401HC1-ECX |
PN: |
LP5007NL |
Made In EthernetChina: |
1000 Base-T |
Pins: |
24Pins |
Family: |
Gigabit Magnetics |
Mounting: |
SMD |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Lifecycle: |
More Than 20Years |
|
XTFZ-DGS2401HC1-TXP Equivalent |
||||||||||||||||||||||||||||||||
| Trader Part Number | XTFZ-DGS2401HC1-TXP |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer |
LINK-PP |
|||||||||||||||||||||||||||||||
| Made In China |

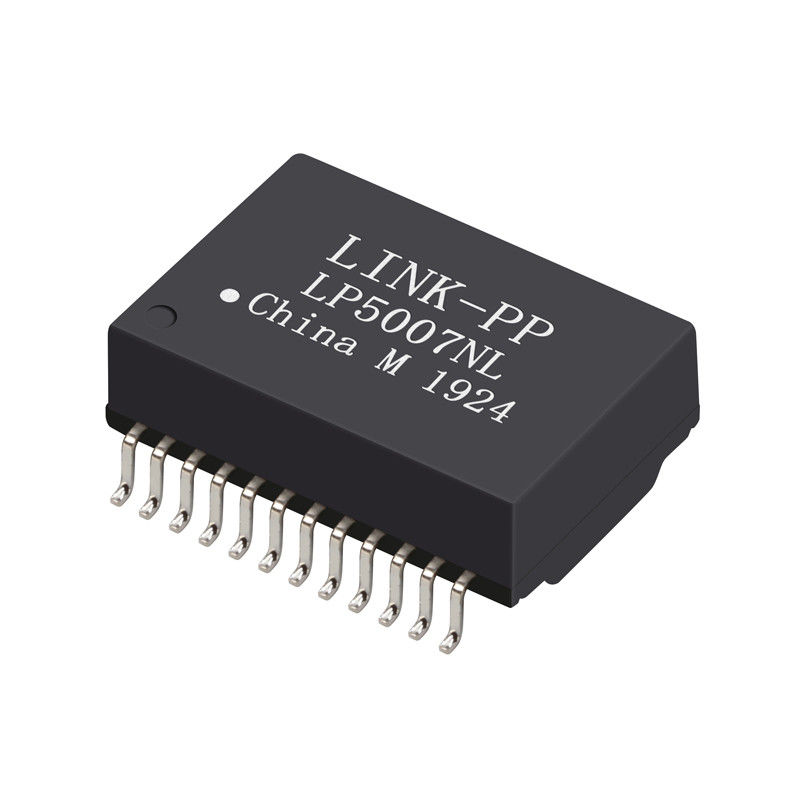

LP5007NL #LINK-PP |
|||||||||||||||||||||||||||||||
| Documents |
PDF/IGS/STEP/Cross/Price/Compatible |
|||||||||||||||||||||||||||||||
| Description | Gigabit Magnetics Transformers | |||||||||||||||||||||||||||||||
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |||||||||||||||||||||||||||||||
| Quantity Available |
3,000 PCS / Or 5 weeks |
|||||||||||||||||||||||||||||||
Detailed Information:
| LINK-PP LP 100% CROSS XTFZ-DGS2401HC1-TXP | |
| LINK-PP Part Number | LP5007NL |
| Specification | XTFZ-DGS2401HC1-TXP |
| Speed | 1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.260 |
| Package Height (mm) | 6.60 |
| Package Length (Inches) | 0.697 |
| Package Length (mm) | 17.70 |
| Package Width (Inches) | 0.650 |
| Package Width (mm) | 16.51 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
