| Specifications: | 6605810-1 | P.N: | LPJG16506CNL |
|---|---|---|---|
| Application: | 100/1000 Mbps | Ethernet: | GIG Ethernet |
| Port: | 1,2,4,6,8 Flexible | Hipot: | 1500V |
| Highlight: | stacked rj45 connectors,rj45 magnetic jack |
||
|

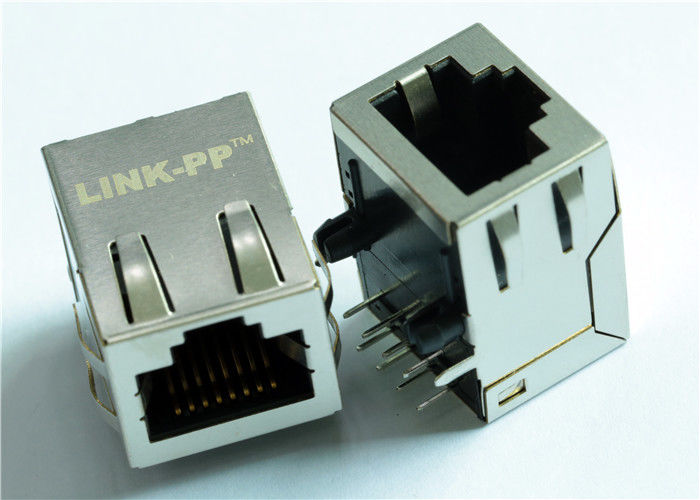

Tyco 6605810-1 |
||||||||||||||||||||||||||||||||
|
Specifications |
6605835-1 Tyco Equivalent |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
LPJG16506CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Gigabit Rj45 Jack Wo/LED |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
Tyco 6605810-1 Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@ 100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio:
TX=1:1 RX=1:1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-[12-20LOG(f/50)]
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20LOG(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: 0℃～70℃./ -40℃～85℃.
