Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

Name: Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps
Brand: LINK-PP
SKU: 5-6605414-1
Rating: 5 (185 reviews)

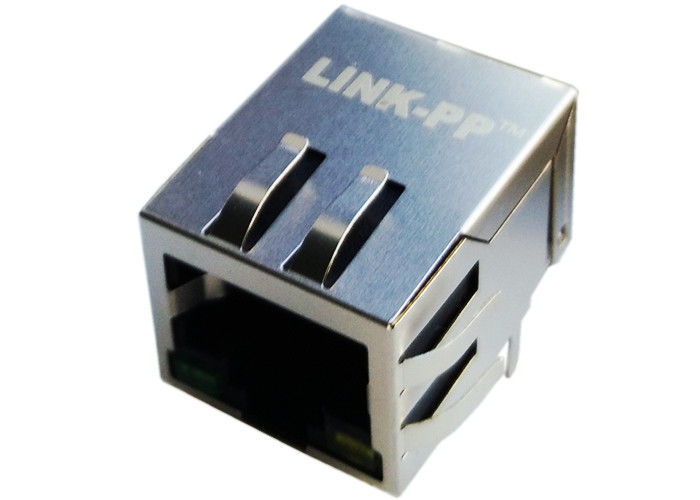

Large Image : Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	5-6605414-1

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000
Price:	Supportive & Competitive
Packaging Details:	Tray & Carton&Reel
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000000/Month

Contact Now

Detailed Product Description

PN#:	5-6605414-1	Made In China:	SM-LPJ00XXABNL
Family:	Rj45 With Magnetics	Interface:	10/100Mbps
LED:	Flexible	Samples:	Available Free
Highlight:	stacked rj45 connectors , rj45 magnetic jack

Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

5-6605414-1

Trader Part Number

5-6605414-1

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ00XXABNL

Manufacturer

LINK-PP China

Description

Rj45 With Magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

5-6605414-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
(P1-P2):(J1-J2)=1:1
(P7-P8):(J3-J6)=1:1
2.Inductance:
(P1-P2): 350uH MIN @100KHz 0.1V,8mA DC Bias
(P7-P8): 350uH MIN @100KHz 0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.1-80MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-12dB MIN @ 30-80MHz
5.Cross talk:
-35dB TYP @ 0.1-100MHz
6.Common To Common Mode Attenuation:
-30dB TYP @ 30-100MHz
7.Hipot Test: 1500VAC
8.Operating Temperature Range: 0℃ TO 70℃

Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps 0
