RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet

Name: RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet
Brand: LINK-PP
SKU: RT5-1070KC2P
Rating: 5 (118 reviews)

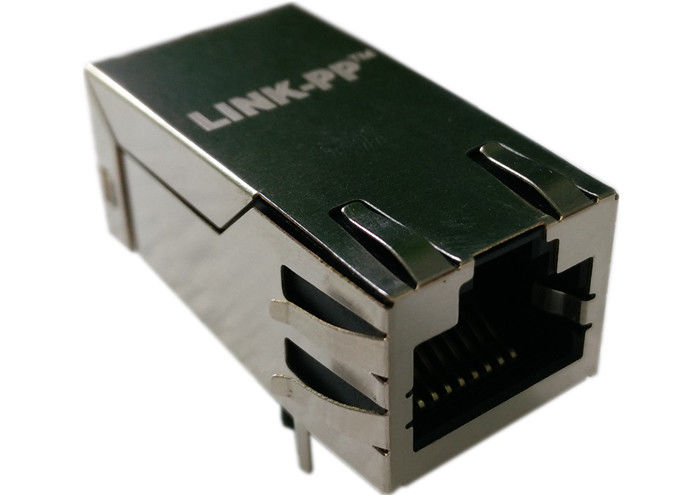

Large Image : RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	RT5-1070KC2P

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000
Price:	Supportive
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4600K.PCS/Month

Contact Now

Detailed Product Description

Specification:	RT5-1070KC2P	Cross Part:	LPJK0071CNL
Original Munafactuer:	LINK-PP	Ethernet:	Gigabit Ethernet
Termination:	Solder	Samples:	Available
Highlight:	stacked rj45 connectors , rj45 with magnetics

RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet

PN# LPJK0071CNL
Cross Specification # RT5-1070KC2P
10/100/1000 Mbps Ethernet; RJ-45 connector
Rj45 Right Angle PCB Connector
Operating temperature: 0°C - + 70°C
Hipot test: 1500Vrms 1min.
Compliant with IEEE 802.3ab for 1000BaseT

RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet 0

Electrical Specifications @25℃

2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1

1.OCL(100KHz,0.1V,8mA DC Bias):
350uH min
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.HI-POT:1500V
8.Operating Temperature: 0～70℃./ -40～+85℃

RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet 1

RT5-1070KC2P RJ-45 Connector Shielded Socket 10/100/1000 Mbps Ethernet 2
