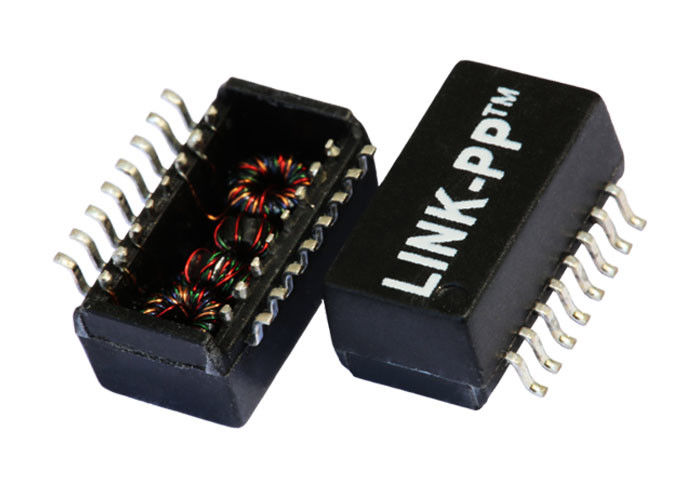

000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins

China 000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins supplier

Large Image :  000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 000-7421-30

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 5000K/month
Contact Now
Detailed Product Description
Specifications: 000-7421-30 Cross Rf: 000-7421-30 => LP41640NL
Measure: 12.7x7.15x6.20mm Mounting: SMD
Ethernet: 1x100Base-Tx Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins
  • Network Magnetic Transformers
  • Isolation Voltage:1500Vrms
  • Type: Surface Mounting
  • Coil Structure: Toroidal
  • 100 Base-T Single Port Transformer Modules
  • Applications : xDSL/ Wireless products/ EPON/ GPON/ IP Camera/ NAS/ STB/ Medical
000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins 000-7421-30 Network Magnetic Transformers LP41640NL XFRMR 10/100B-TX 16 Pins
Specifications 000-7421-30
REACH Compliant Yes
EU RoHS Compliant Yes
Cross Compatible LP41640NL
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Approvals UL
Insertion Loss 1.0 dB
Isolation Voltage 1500.0 V
Mounting Feature SURFACE MOUNT
Operating Frequency-Min 100.0 kHz
Operating Frequency-Max 125000.0 kHz
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Primary Inductance 350
Turns Ratio (Np:Ns) 1:1; 1:1
Height(mm) 6.20 mm
Length(mm) 12.70 mm
Width(mm) 7.15 mm



Electrical Specification @25℃
1.Turns Ratio(±2%):
   (1-3):(16:14)=1:1

   (6-8):(11-9)=1:1

2.Inductance OCL: 350uH Min
   @100KHz,0.1Vrms,8mADC

3.Dielectic Rating:

   1500VAC for 1 minute
4.Insertion Loss:
  1-100MHz:-1.2dB Max
5.Return Loss(dB Min):
   1-30MHz:-16

   30-40MHz:-14
   40-50MHz:-13

   50-80MHz:-12
6.Crosstalk:
   1-100MHz:-35dB Min
7.DCMR:
   1-100MHz:-35dB Min
8.Designed to handle 350mADC and meet 802.3af
9.Operating Temperature Range:0~70℃
