Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

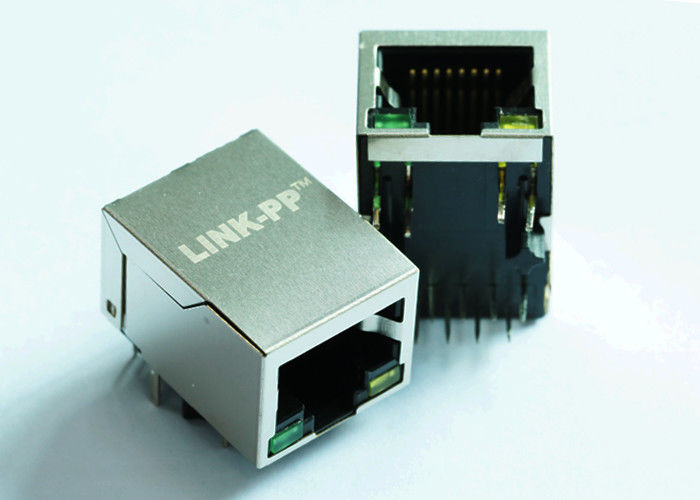

Model Number: LPJ0012HDNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part No: |
LPJ0012HDNL |
Munafactuer: |
LINK-PP |
Ethernet: |
1x10/100Mbps |
Indicator: |
LED Optional |
Mounting: |
R/A |
Alternative Rf: |
MIC24211-0101 => LPJ0012HDNL |
Part No: |
LPJ0012HDNL |
Munafactuer: |
LINK-PP |
Ethernet: |
1x10/100Mbps |
Indicator: |
LED Optional |
Mounting: |
R/A |
Alternative Rf: |
MIC24211-0101 => LPJ0012HDNL |
|
|
Electrical Specifications @ 25℃
1.Turns Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18
30～60MHz:-16
60～80MHz:-12
80～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40
30～60MHz:-35
60～100MHz:-30
6.Common Mode Rejection(dB Min):
1～50MHz:-40
50～150MHz:-30
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.
