Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

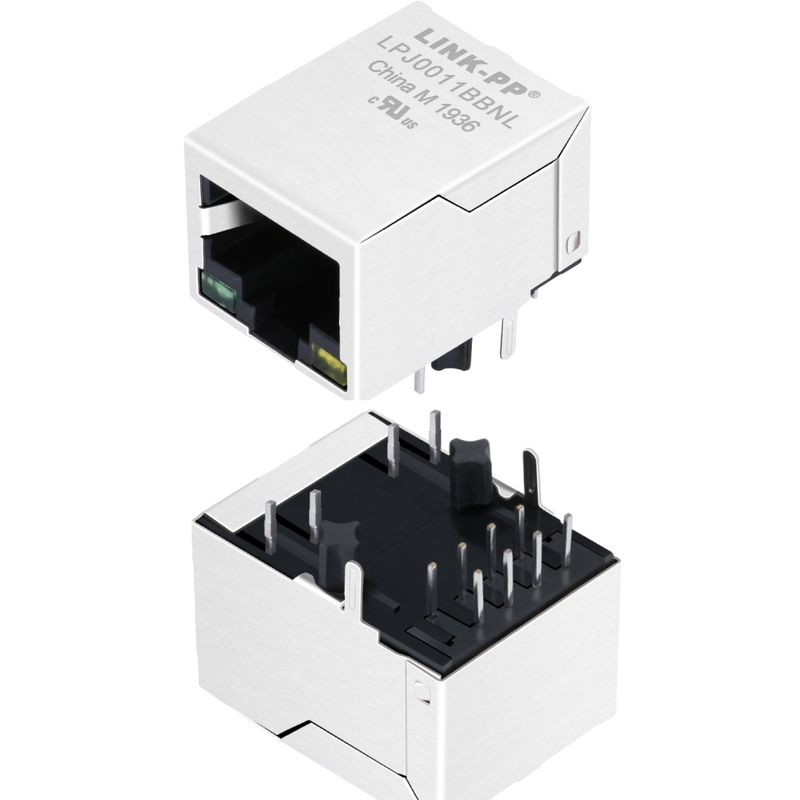

Model Number: J0011D01BNL(LPJ0011BBNL)
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Item: |
J0011D01BNL |
Ethernet: |
10/100 Base-T,AutoMDIX |
Equivalent: |
SM-LPJ0011BBNL |
Project Application: |
Networking Solutions |
Termination: |
Solder |
Samples: |
Free & Available |
Item: |
J0011D01BNL |
Ethernet: |
10/100 Base-T,AutoMDIX |
Equivalent: |
SM-LPJ0011BBNL |
Project Application: |
Networking Solutions |
Termination: |
Solder |
Samples: |
Free & Available |
J0011D01BNL Electrical Specifications @ 25°C — Operating Temperature 0°C to +70°C
| Turn Ratios | EMI Fingers | LEDs (L/R) | Insertion Loss (dB TYP) | Return Loss (dB TYP) 100W ±15W | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (VDC) | |||||||
| TX | RX | 1-65 MHz |
1-10 MHz |
10-30 MHz |
30-60 MHz |
60-80 MHz |
1-30 MHz |
30-60 MHz |
60-100 MHz |
1-50 MHz |
50-150 MHz |
1 MIN | ||
| 1CT:1 | 1CT:1 | No | G/Y | -1 | -20 | -16 | -12 | -10 | -40 | -35 | -30 | -30 | -20 | 2250 |
J0011D01BNL 1x1 Tab-DOWN RJ45 Jack Durability Testing Rating
| Mating Force(MAX) | Unmating Force (MAX) | Durability | Plug to Jack Retention (MIN) |
| 5 lbs./2.268 kgs | 5 lbs./2.268 kgs. | 750 Insertions | 20 lbs./9.072 kgs. |
J0011D01BNL Magnetic RJ45 Connector Material Specification
| Shield | Contact | Housing | MSL Rating | ||||
| Material | Finish | Material | Plating Area | Solder Area | Material | Specification | |
| Brass | 10-20m inches Nickel over10-20m inchesBrass | Phosphor Bronze | Nickel underplating and selective gold plating 15µ inches | 120µ inches SN100 over 50µ inches nickel | Thermoplastic | UL94V-0 | 1 |
| Notes: 1. Connector dimensions comply with FCC dimension requirements. 2. RoHS parts are tin matte finish over nickel. 3. MSL = Moisture Sensitivity Level rating from 1 to 5 (highest = 1, lowest = 5) |
|||||||
LINK-PP laboratory covers a full set of cutting-edge testing equipment, including high and low-temperature thermal shock testing, insertion and extraction force testing, vibration testing, two-dimensional scanning and high-frequency testing, etc. These tests verify that our product quality exceeds industry standards. Insertion and extraction force testing verify the durability of RJ45 connectors. High-frequency testing helps ensure stability during high-speed data transmission. Vibration and shock tests demonstrated its suitability in industrial environments. It can also test the reliability of data centers and communication networks. RJ45 connectors are equipped with professional testing personnel and testing equipment for raw material inspection, winding coil visual inspection, tin plating welding inspection, LED testing, electrical performance testing, and finished product shipment inspection.
