Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJP11A-MBSB-A-B-EMU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000000/Month
Mfr Package Description: |
ROHS COMPLIANT |
Mounting Feature: |
THROUGH HOLE MOUNTED |
Physical Dimension: |
L16.26XB21.59XH13.84 (mm) |
Application: |
LAN ; 10/100 BASE-T ; AUTOMDIX |
Isolation Voltage: |
1500 KV |
Part Number: |
ARJP11A-MBSB-A-B-EMU2 |
Mfr Package Description: |
ROHS COMPLIANT |
Mounting Feature: |
THROUGH HOLE MOUNTED |
Physical Dimension: |
L16.26XB21.59XH13.84 (mm) |
Application: |
LAN ; 10/100 BASE-T ; AUTOMDIX |
Isolation Voltage: |
1500 KV |
Part Number: |
ARJP11A-MBSB-A-B-EMU2 |
Quick Details
Specifications
|
Characteristics
|

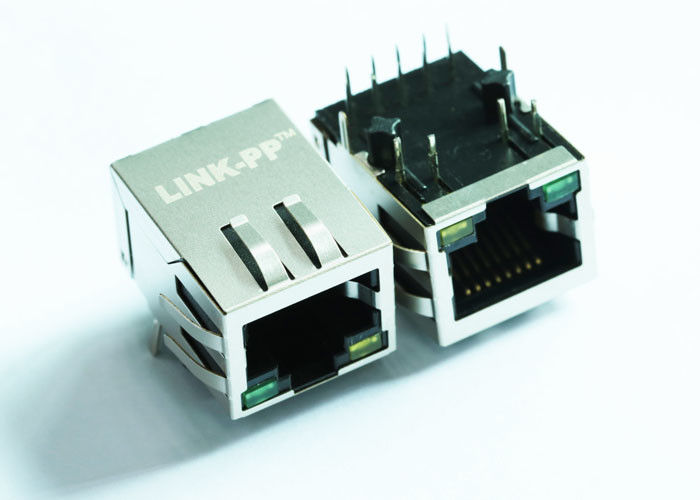

ARJP11A-MBSB-A-B-EMU2 Through Hole RJ45 With Integrated Magnetics LAN Controllers |
| 2)SMT,THT and THT with USB | |
| 3)350μH min,OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
|
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available |
|
| 6)PoE/PoE+ (350mA~720mA) | |
| Operation/Application | ×DSL Modems |
| EMbedded PC | |
| LAN Applications | |
| Hub,Router,Switches | |
| AVR,DVR | |
| Electrical Characteristics | |
| Shielded | with |
| Termination Features | |
| EMI Finger | with |
| Termination Method |
Solder |
| Body Features | |
| LED | with |
| EMI Fingers - Top and Sides | with/without |
| Latch Orientation | Tab Down |
| PCB Tail Length | 3.5±0.5mm |
|
Height Above Board |
Optional |
| Contact Features | |
| Preloaded | YES |
| Contact Termination Type | Through Hole |
| Connector Style | Jack |
|
Cores Number |
4 |
| Industry Standards | |
| Lead Free Solder Process | Wave solder capable to 265°c |
| RoHS/elv Compliance History | Always was RoHS Compliant |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
| Other Features | |
| Magnetic Circuit | 3D15 |
| Status Indicator | LED |
| Left LED Color | Optional |
| Right LED Color | Optional |
| Decoupling capacitor | with/without |
| Rear PCB Ground Tab | with/without |
| Singal Lead Quantity | 4 |
|
Datasheets |
E-mail Inquiry to Summer@link-PP.com |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
ARJP11A-MBSB-A-B-EMU2 Through Hole RJ45 With Integrated Magnetics LAN Controllers
