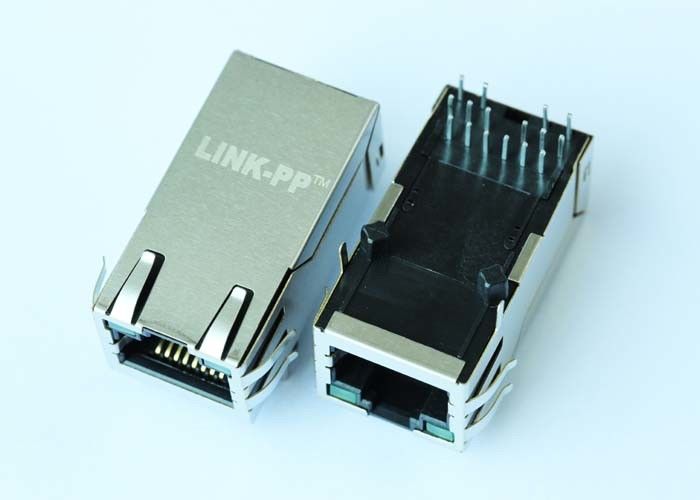

857931001 RJ45 Built -in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL
857931001 RJ45 Built -in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL

857931001 RJ45 Built -in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 857931001

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive&Discount

Packaging Details: 60PCS/Tray,16Trays=960PCS=37*30*30CM=9 KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Specification:
857931001
Part No:
LPJK0038AWNL
Ethernet:
1x 10/100/1000 Full Duplex
Turn Ratio:
1CT:1CT
Mounting:
Thru-Hole Long Body
Samples:
Available 3-5 PCS
Specification:
857931001
Part No:
LPJK0038AWNL
Ethernet:
1x 10/100/1000 Full Duplex
Turn Ratio:
1CT:1CT
Mounting:
Thru-Hole Long Body
Samples:
Available 3-5 PCS
857931001 RJ45 Built -in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL
857931001 RJ45 Built-in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL
  1. LPJK0038AWNL LINK-PP Rj45 With Integrated Transformer
  2. 1x 10/100/1000 Full Duplex LED Indicator
  3. Rj45 Shield With LED Indicator For Gigabit Ethernet
  4. Can be used to Industrial Model
  5. High Quality Compatible to Military Project Standards

857931001 RJ45 Built -in Magnetics 1x 1000 Full Duplex LED Indicator LPJK0038AWNL 0
1.Turns Ratio(±2%):
   TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL:
   350uH Min @ 100KHz 0.1V
3.Hipot: 1500VAC 1S 1mA
4.Insertion Loss:
   -0.5dB MAX @ 10KHz
   -0.7dB MAX @ 50MHz
   -1.0dB MAX @ 80MHz
   -1.3dB MAX @ 100MHz
5.Return Loss:
   -27dB MIN @ 10MHz
   -10dB MIN @ 100MHz
6.Crosstalk:
   -50dB MIN @ 6MHz
   -34dB MIN @ 50MHz
   -25dB MIN @ 100MHz
7.DCMR:
   -34dB MIN @ 10MHz
   -27dB MIN @ 80MHz
   -21.5dB MIN @ 200MHz
   -10dB MIN @ 400MHz
   -10dB MIN @ 1000MHz
8.Operating Temperature: 0℃～+70℃.
1.Part Number:
   857931001
2.Cross Compatible
   LPJK0038AWNL
3.Manufacturer
   LINK-PP
4.Speed
   10/100/1000 BASE-T
5.Height(mm)
   13.50
6.Length(mm)
   32.50
7.Width(mm)
   16.60
8.Number of Port:
   1X1
9.LED
   GREEN/GREEN
10.Shield EMI Tabs
   WITH
11.PCB Mount Angle
   SIDE ENTRY
12.Application
   GENERAL PURPOSE
