LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT

China LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT supplier
LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT supplier LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT supplier

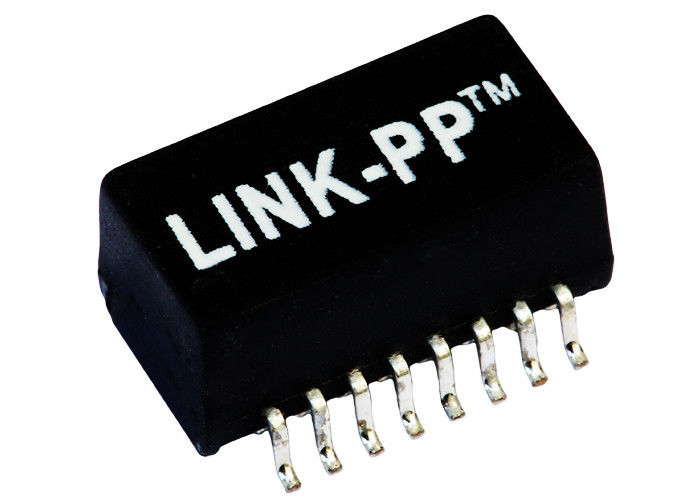

Large Image :  LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1183NLE

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1183NLE P/N: LP1183NLE
Measure: 12.70x9.30x6.20mm Mounting: SMT
Ratio: 1CT:1CT Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP1183NLE Ethernet Magnetic Transformers SINGLE PORT 1:1 SMT

1. Coil Number: Autotransformer 10/100Base-Tx
2. Isolation Voltage:1500Vrms
3.Type:SMT
Ethernet transformer isolation
4. Coil Structure: Toroidal

10/100Base-T Single Port Transformer Modules

Application
LAN ETHERNET
AutomDX
YES
Comment
RoHS Compliant LP1183NLE
Configuration RX
T,C
Configuration TX
T,C
Construction
TRANSFER MOLD
Cores Per Port
4
Number of Ports
QUAD
PCB
NO PCB
Package
SMT
Package Height (Inches)
0.225 or other
Package Height (mm)
5.715 or other
Package Length (Inches)
1.12 or other
Package Length (mm)
28.448 or other
Package Width (Inches)
0.63 or other
Package Width (mm)
16.002 or other
RoHS Compliant
YES-RoHS-6
Speed
10/100/1000BASE-TX
Temperature
0 TO 70/-40 To +85
Turns Ratio RX
1CT:1CT
Turns Ratio TX
1CT:1CT
Main P/N
LP1183NLE

Electrical Specifications (25):



1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side


Other Parts Available:


  1. LP1188NL LINK-PP
  2. LP1193NL LINK-PP
  3. LP1193NLE LINK-PP
  4. LP1197ANL LINK-PP
  5. LP1197NL LINK-PP
