24HSS1041-2 Gigabit Ethernet Transformer Schematic With 1000 Base-TX LP5004NL

China 24HSS1041-2 Gigabit Ethernet Transformer Schematic With 1000 Base-TX LP5004NL supplier

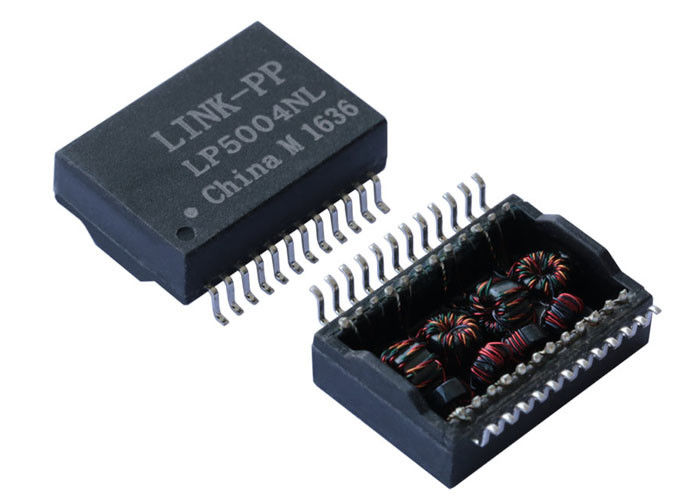

Large Image :  24HSS1041-2 Gigabit Ethernet Transformer Schematic With 1000 Base-TX LP5004NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 24HSS1041-2

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: 24HSS1041-2 Speed: 1000 BASE-T
Number Of Ports: SINGLE Application: Lan Ethernet
Package: SMD PIN Number: 24
Temperature: 0℃ TO 70℃ Cores Per Port: 8

24HSS1041-2 Gigabit Ethernet Transformer Schematic With 1000 Base-TX LP5004NL



Detailed Information:

1000 Base -T Magnetics Transformer Modules SMD, Rohs
LINK-PP Part Number LP5004NL
Bothhand Part Number 24HSS1041-2
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.246
Package Height (mm) 6.25
Package Length (Inches) 0.715
Package Length (mm) 18.15
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

24HSS1041-2 Gigabit Ethernet Transformer Schematic With 1000 Base-TX LP5004NL
