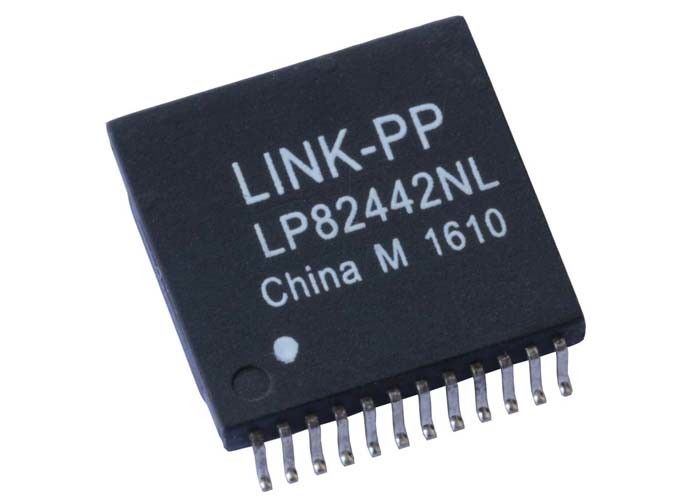

GSN5009 LF Gigabit Lan Discrete Transformer Modules 10 / 100 / 1000BT Magnetic LP82442NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: GSN5009 LF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

smt magnetic transformer

,

surface mounting transformer

Specifications:
GSN5009 LF
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
14.99X13.08X3.68 (mm)
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
GSN5009 LF
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
14.99X13.08X3.68 (mm)
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
GSN5009 LF Gigabit Lan Discrete Transformer Modules 10 / 100 / 1000BT Magnetic LP82442NL
GSN5009 LF Gigabit LAN SMT Transformer 10/100/1000BT Magnetic LP82442NL

LINK-PP Cross References LP82442NL
Manufacturer Series GSN5009 LF
Mounting Feature SURFACE MOUNT
Number of Functions 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Packing Method TAPE & REEL
Primary Inductance 350.0 µH
Sub Category Other Transformers
Terminal Finish Tin (Sn)
Turns Ratio (Np:Ns) 1:1
Height 3.68 mm
Length 14.99mm
Width 13.08 mm
