Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG1G-S032NYLF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TG1G-S032NYLF |
Samples: |
Free |
Ethernet: |
1x 10/100/1000Mbps |
Position: |
24 Pins |
Measure: |
18.80 X13.64 X 5.72mm |
Cross Rf: |
LP5008NL |
Specification: |
TG1G-S032NYLF |
Samples: |
Free |
Ethernet: |
1x 10/100/1000Mbps |
Position: |
24 Pins |
Measure: |
18.80 X13.64 X 5.72mm |
Cross Rf: |
LP5008NL |

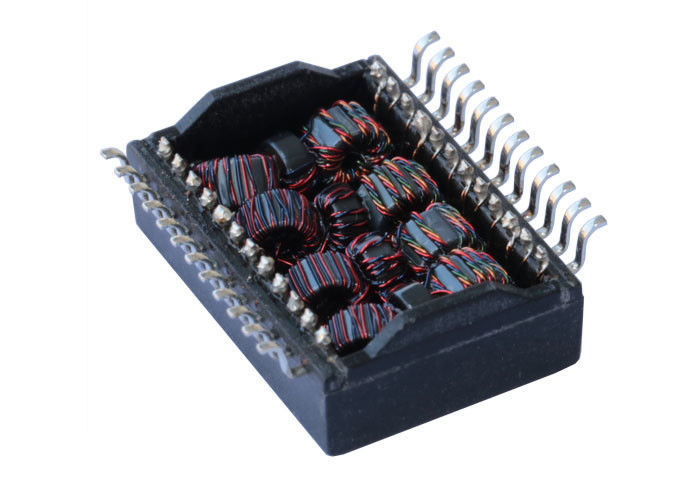

1.1000 BASE-T Ethernet Transformer Modules
2. Isolation Voltage:1500Vrms
3. Single Port Ethernet Magnetic Transformers
4. Pin To Pin LINK-PP LP5008NL
| Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | LP5008NL |
| Halo Part Number | TG1G-S032NYRL |
| Speed | 1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | 0 TO + 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.225 |
| Package Height (mm) | 5.72 |
| Package Length (Inches) | 0.740 |
| Package Length (mm) | 18.80 |
| Package Width (Inches) | 0.537 |
| Package Width (mm) | 13.64 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
100% test
Flexible delivery time
LP5008ANLE
LP5008NL
LP5008NLE
LP5009ANL
LP5009NL
LP5009NLE
LP5011ANL
