FA0185 Gigabit Ethernet Transformer Dual Port 1000Base-T Magnetic LP5014NL

China FA0185 Gigabit Ethernet Transformer Dual Port 1000Base-T Magnetic LP5014NL supplier

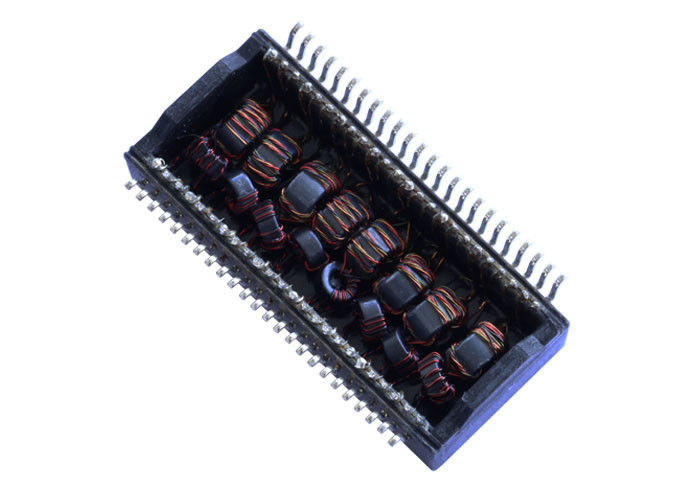

Large Image :  FA0185 Gigabit Ethernet Transformer Dual Port 1000Base-T Magnetic LP5014NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: FA0185

Payment & Shipping Terms:

Minimum Order Quantity: 350 PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
PN: FA0185 Mass PN: LP5014NL
Pins: 48 Apllication: Gigabit Ethernet 2 Port
Original Munafactuer: LINK-PP Samples: Available 1-3 Pcs

FA0185 Gigabit Ethernet Transformer Dual Port 1000Base-T Magnetic LP5014NL

Trader PN

Manufacturer PN

Manufacturer Description
FA0185 LP5014NL LINK-PP

1000Base-T Magnetic Modules


Series Transformer Type Applications Turn Radio
Transformer Isolation and Data Interface  1000  Base-T 1:1

Mounting Type Size / Dimension Height - Seated (Max) Unit Price
Surface Mount 28.00mm x15.40mm x 7mm  7mm Negotiable



LP5014NL Electrical Specification @25℃

1.Insertion Loss:
1-100MHz:-1.4dB Max
2.Return Loss(dB Min):
1-30MHz:-16 40MHz:-14.4
50MHz:-13.1 60-80MHz:-12
100MHz:-10
3.Crosstalk(dB Min):
30MHz:-43.5 60MHz:-37.5
100MHz:-33
4.DCMR(dB Min):
30MHz:-45 60MHz:-40
100MHz:-35
5.Hipot: 1500Vrms Min
6.Operating Temperature: -40℃~+85℃.


NOTES:

1.Designed to support application,such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and Switches.

2.With various Turns Ratios.
3.350uH min OCL with 8mA bias current.
4.RoHS"NL" peak solder rating 255±5℃.
