Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RT7-174ABB1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
RT7-174ABB1A |
Interface: |
10/100Base-T,AutoMDIX |
Mechanical: |
21.50x15.90x13.80mm |
Application: |
MinnowBoard MAX Of Intel |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
RT7-174ABB1A |
Interface: |
10/100Base-T,AutoMDIX |
Mechanical: |
21.50x15.90x13.80mm |
Application: |
MinnowBoard MAX Of Intel |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

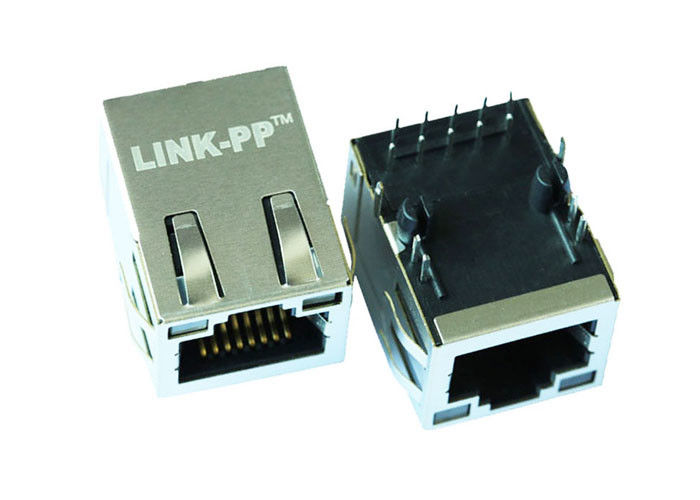

| 1x1 Port 8P8C RJ45 Female Connector without 10/100Base-T Magnetics , Orange,Green/Yellow LED,Tab Up,RoHS | |
| Part Number | RT7-174ABB1A |
| LINK-PP Part Number | LPJ16278AQNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores per Port | NO |
| Diodes | NO DIODES |
| LED Option | ORANGE,GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.80 |
| Package Length (mm) | 21.50 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
