Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: PTC11XX-01
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
PTC11XX-01 |
Cross&Datasheet: |
LPJF0014CNL |
Apllication: |
10/100 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
PTC11XX-01 |
Cross&Datasheet: |
LPJF0014CNL |
Apllication: |
10/100 Base-TX |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

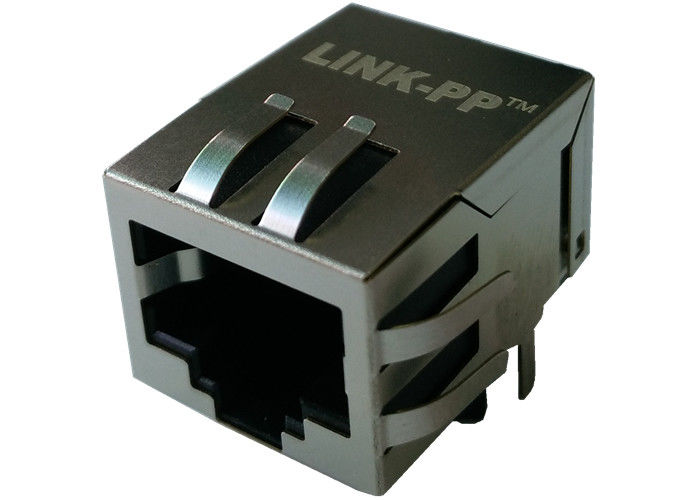

| Single Port Stacked RJ45 Connector Magjack with 10/100 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJF0014CNL |
| Part Number | PTC11XX-01 |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITHOUT |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.60 |
| Package Length (mm) | 21.30 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. |
