5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL

China 5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL supplier
5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL supplier 5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL supplier

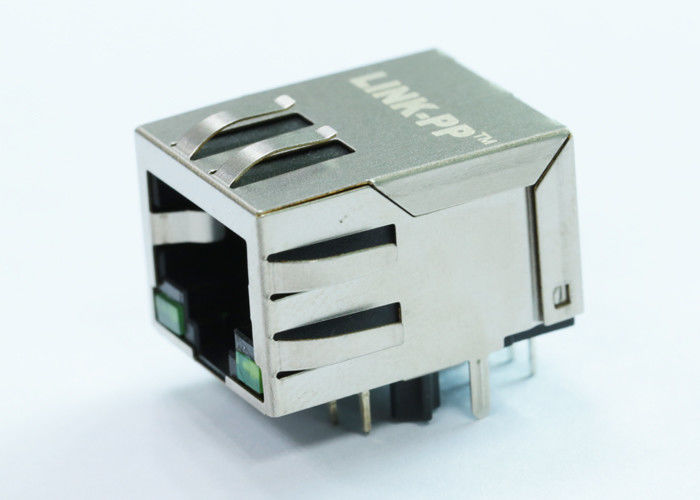

Large Image :  5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 5-6605473-7

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specifications: 5-6605473-7 Part No: LPJ0011GFNL
Mounting: Shield R/A Apllication: 10/100mbps
Indicator: LEDs Samples: Available

5-6605473-7 10/100Mbps Magnetic RJ45 Jack UL Certification LPJ0011GFNL



Single Port Stacked RJ 45 Connector Connects with 10/100 Base-T Integrated Magnetics,Green/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJ0011GFNL
Other Part Number 5-6605473-7
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/GREEN
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
