46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL

China 46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL supplier
46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL supplier 46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL supplier

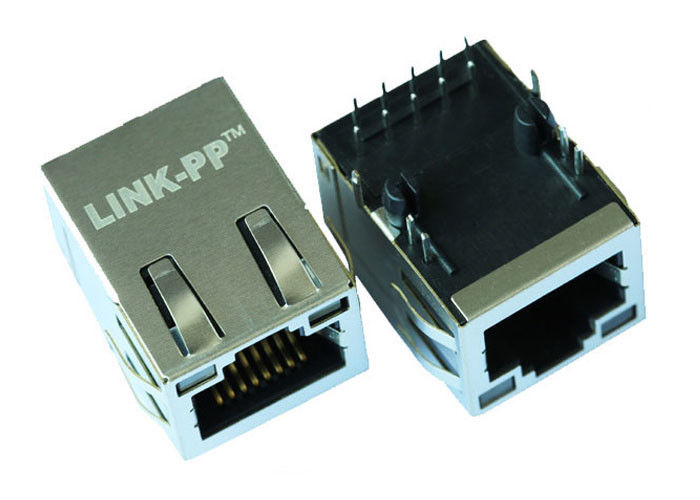

Large Image :  46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 46F-1305GYD2NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part No: 46F-1305GYD2NL Specification: LPJG16409AENL
Ethernet: 1x10/100/1000Mbps Indicator: LED Optional
Mounting: R/A Shield Samples: Available Free

46F-1305GYD2NL 1000 Base-T Magnetic Rj45 Jack Shield Right Angle LPJG16409AENL



Shielded 1x1 Port 8P8C RJ45 Female Connector with 1000 Base-T Integrated Magnetics, Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJG16409AENL
Part Number 46F-1305GYD2NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.529
Package Height (mm) 13.45
Package Length (Inches) 0.836
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
