HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE

China HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE supplier
HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE supplier HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE supplier

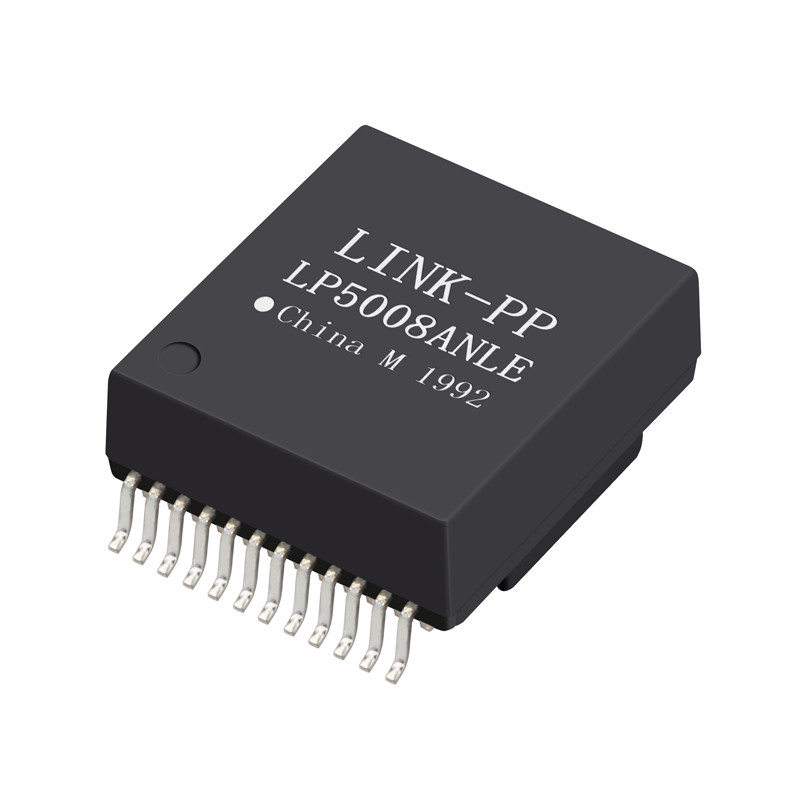

Large Image :  HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HX5008NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: HX5008NL P/N: LP5008ANLE
Ethernet: 1xG-bit Ethernet Measure: 13.64x18.80x5.72mm
Mounting: SMD Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

HX5008NL Single Port 1000 BASE-T Ethernet Transformer Modules LP5008ANLE

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5008ANLE
Pulse Part Number HX5008NL
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 12
Number of Ports SINGLE
Package Height (Inches) 0.225
Package Height (mm) 5.72
Package Length (Inches) 0.740
Package Length (mm) 18.80
Package Width (Inches) 0.537
Package Width (mm) 13.64
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
