CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL

China CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL supplier
CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL supplier CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL supplier CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL supplier

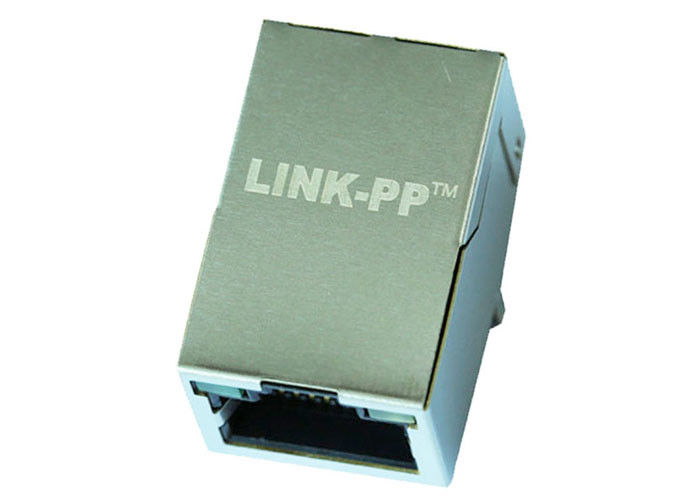

Large Image :  CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: CP-5Q011M-004

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: CP-5Q011M-004 Mass Production: LPJK9491BHNL
Mounting: DIP / Side Entry Application: 5GBase-T POE+
Indicators: Green/Yellow LEDs Samples: Available

CP-5Q011M-004 PoE+ RJ45 Female Connector with 5G Base-T LPJK9491BHNL

Shielded 1x1 Port RJ45 Female Connector with 5G Base-T Integrated Magnetics,Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJK9491BHNL
Other Part Number CP-5Q011M-004
Application-Lan ETHERNET(PoE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 1.280
Package Length (mm) 32.50
Package Width (Inches) 0.654
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 5G BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT∶1 RX=1CT∶1
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃.

FAQ

Q:Are you a factory or a trading company?

A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.

Q:Can I get a free sample?

A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.

Q:How long is your delivery?

A:5-7 days in case of stock, normal is 2-3 weeks delivery

Q:What are your payment terms?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q:What are the ways you transport goods?

A:90% Off Shipping Cost By DHL UPS DEDEX Or TNT
