Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 74980104400
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
5-1840401-7 |
Specification: |
LPJG16457AFNL |
Apllication: |
10/100/1000 Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
5-1840401-7 |
Specification: |
LPJG16457AFNL |
Apllication: |
10/100/1000 Base-T(x) |
Original Munafactuer: |
LINK-PP |
Mail Customer: |
Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

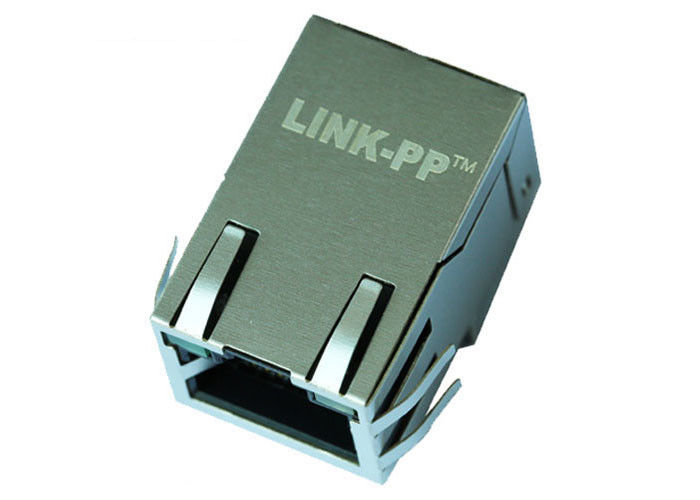

Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Integrated Magnetics,Green/Green LED,Tab UP,RoHS | |
LINK-PP Part Number | LPJG16457AFNL |
Tyco Part Number | 5-1840401-7 |
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | Green/Green LEDs |
Latch | TAB UP |
Number of Ports | 1X1 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.530 |
Package Height (mm) | 13.45 |
Package Length (Inches) | 0.837 |
Package Length (mm) | 21.25 |
Package Width (Inches) | 0.628 |
Package Width (mm) | 15.95 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | With |
Speed | 10/100/1000Base-T |
Temperature | -40 TO 85℃ |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
Why Choose LINK-PP
Quality
World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.
Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .
Texas Instruments | INTEL | SAMSUNG | FLUKE | EKF | HUAWEI | IBM | CISCO |
FLEXTRONICS | JABIL | Foxconn | CANON | Arduino | -- | --- | --- |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments
LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.
Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board
LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/MoneyGram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
What's the Refund&Replacement?
If there are any quality problems, please make sure all these items must be returned in their original condition to qualify for a refund or replacement. (Any used or damaged items can not be refunded or replaced).
