HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules

China HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules supplier

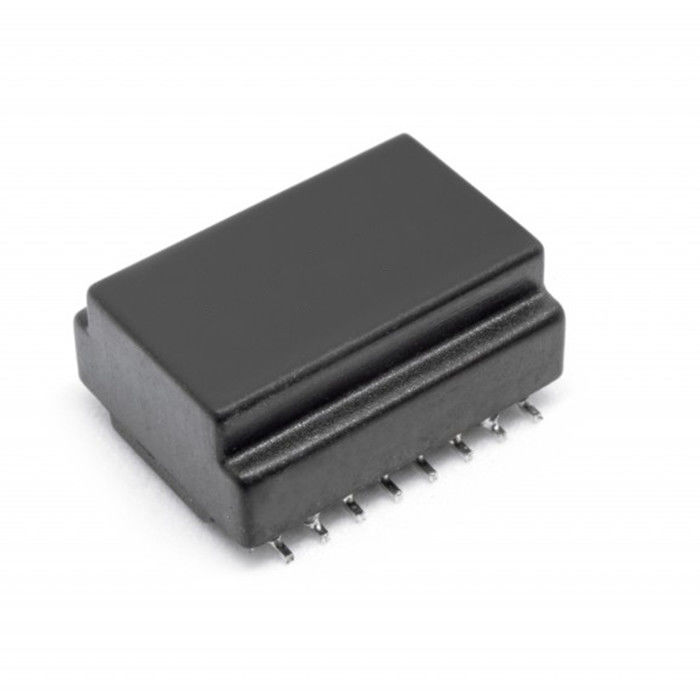

Large Image :  HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM1237NL / HM1237NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HM1237NL / HM1237NLT Port: DUAL
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules



BMS Transformer, 2-Ch, 600 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM1237NL / HM1237NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer/Choke
Construction Open Frame
Isolation Voltage 2500 VRMS
Number of channels 2
Package SMT
Rohs Compliant YES-RoHS-6
Temperature - 40℃ TO +125℃
Working Voltage 600
Construction OPEN FRAME
Package Height (Inches) 0.225
Package Height (mm) 5.72
Package Length (Inches) 0.455
Package Length (mm) 11.56
Package Width (Inches) 0.375
Package Width (mm) 9.53
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
