Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

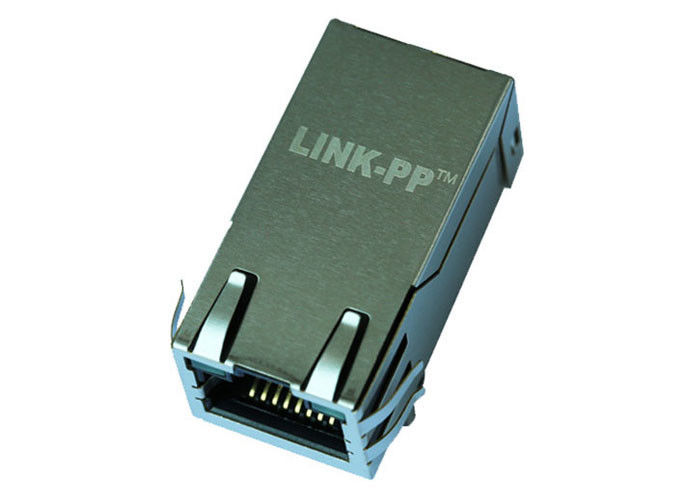

Model Number: ARJM11C7-805-AN-CW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
ARJM11C7-805-AN-CW4 |
Apllication: |
2.5G Base-T Ethernet Application |
Original Munafactuer: |
LINK-PP |
Project Application: |
Industrial Switches |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Sample: |
Free |
Part Number: |
ARJM11C7-805-AN-CW4 |
Apllication: |
2.5G Base-T Ethernet Application |
Original Munafactuer: |
LINK-PP |
Project Application: |
Industrial Switches |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Sample: |
Free |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.543" (13.80mm) | |
| LED Color | Green | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Up | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Our Services
Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.
Feedback:Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
Application field
1) MEDICAL
Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis
2) NETWORKING
Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet
3)TELECOM/DATACOM
Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices
3) CONSUMER
Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices
4) SECURITY
Control Panels, Fire Alarm Zones, Hand Held Devices
Business partner
LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.
For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .
