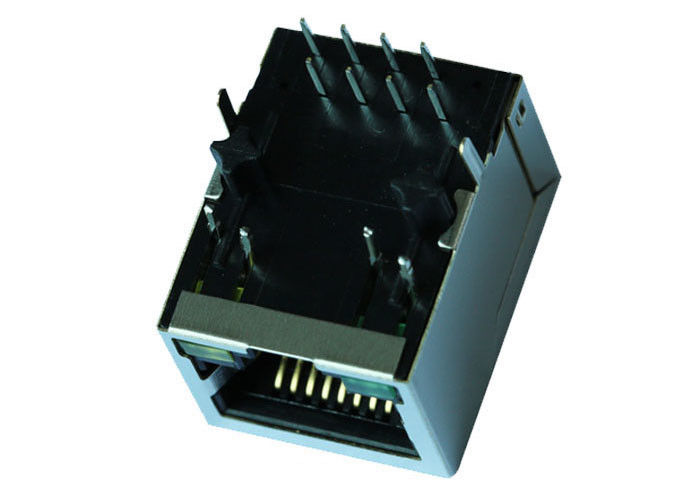

Model Number: ARJM11B3-809-AD-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
ARJM11B3-809-AD-CW2 |
Part No: |
LPJXXXXNL |
Ethernet: |
1x2.5G Mbps |
Indicator: |
Green - Orange |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Specification: |
ARJM11B3-809-AD-CW2 |
Part No: |
LPJXXXXNL |
Ethernet: |
1x2.5G Mbps |
Indicator: |
Green - Orange |
Mounting: |
R/A Shield |
Samples: |
Available Free |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green - Orange | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%): 1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 0.3-100MHz
-1.5dB MAX @100-125MHz
4.Return Loss:
-15dB MIN @ 40MHz
-13.1dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
6.Common Mode Rejection:
-43dB MIN @ 30MHz
-37dB MIN @ 80MHz
-33dB MIN @ 100MHz
7.CMRR: -30dB Min @1-100MHz
8.Hipot Test: 1500Vrms MIN
9.Operating Temperature Range: 0℃ TO 70℃
