Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11B3-811-AN-ER4-T / ARJM11B1-811-AN-ER4-T
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN.1: |
ARJM11B3-811-AN-ER4-T |
PN.2: |
ARJM11B1-811-AN-ER4-T |
Apllication: |
RJ45 With Integrated Magnetics |
Original Munafactuer: |
LINK-PP |
Product Family: |
Modular Jacks / Plugs |
Samples: |
Free Available |
PN.1: |
ARJM11B3-811-AN-ER4-T |
PN.2: |
ARJM11B1-811-AN-ER4-T |
Apllication: |
RJ45 With Integrated Magnetics |
Original Munafactuer: |
LINK-PP |
Product Family: |
Modular Jacks / Plugs |
Samples: |
Free Available |

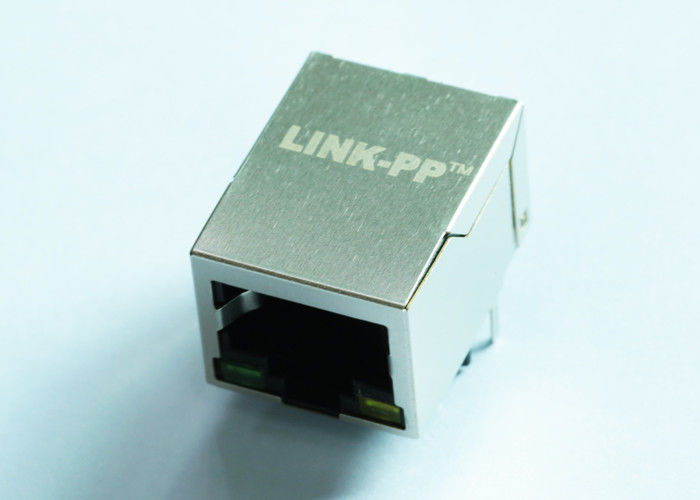

1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green LED,Tab Down,RoHS | |
LINK-PP Part Number | LPJGxxxxNL |
Abracon LLC Part Number | ARJM11B1-811-AN-ER4-T / ARJM11B3-811-AN-ER4-T |
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | Green LEDs |
Latch | TAB Down |
Number of Ports | 1X1 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.535 |
Package Height (mm) | 13.60 |
Package Length (Inches) | 0.839 |
Package Length (mm) | 21.30 |
Package Width (Inches) | 0.626 |
Package Width (mm) | 15.90 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | Without |
Speed | 5G Base-T |
Temperature | -40°C ~ 85°C |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
